FUSING UNIT
B291/B295/B296/B297 3-64 SM
3.15.5 THERMISTORS AND THERMOSTATS
1. Fusing unit (! 3.15)
2. Fusing upper and lower cover. (! 3.15.3)

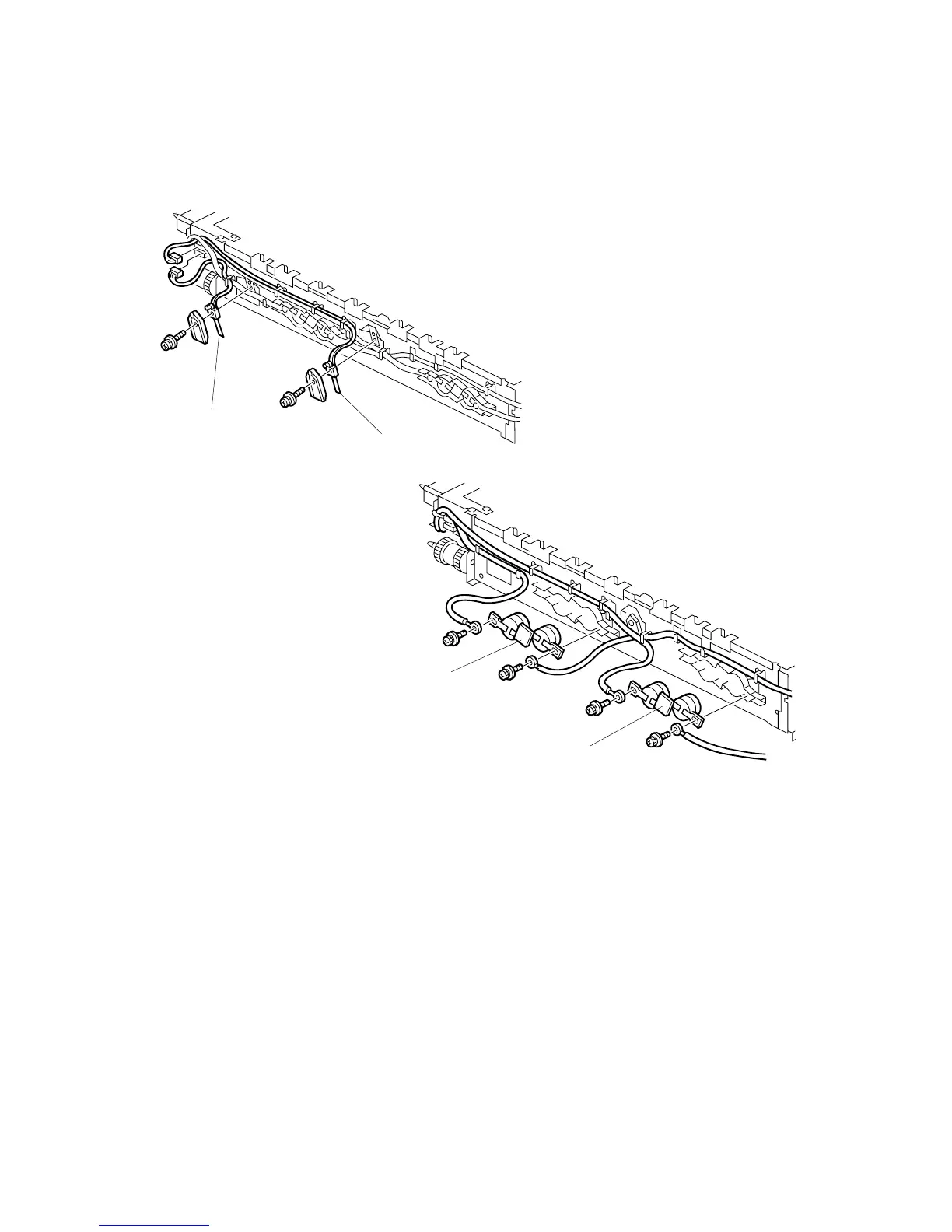

3. Center thermistor [A] (! x1, " x1, holder x1)
4. End thermistor [B] (! x1, " x1, holder x1)
CAUTION: The thermistors are thinly coated and extremely fragile. Handle with
care to avoid damaging them. They should be replaced every 150K.
5. Center thermostat [C] (! x2)
6. End thermostat [D] (! x2)
