FUSING UNIT
SM 3-63 B291/B295/B296/B297
Replacement
Adjustment

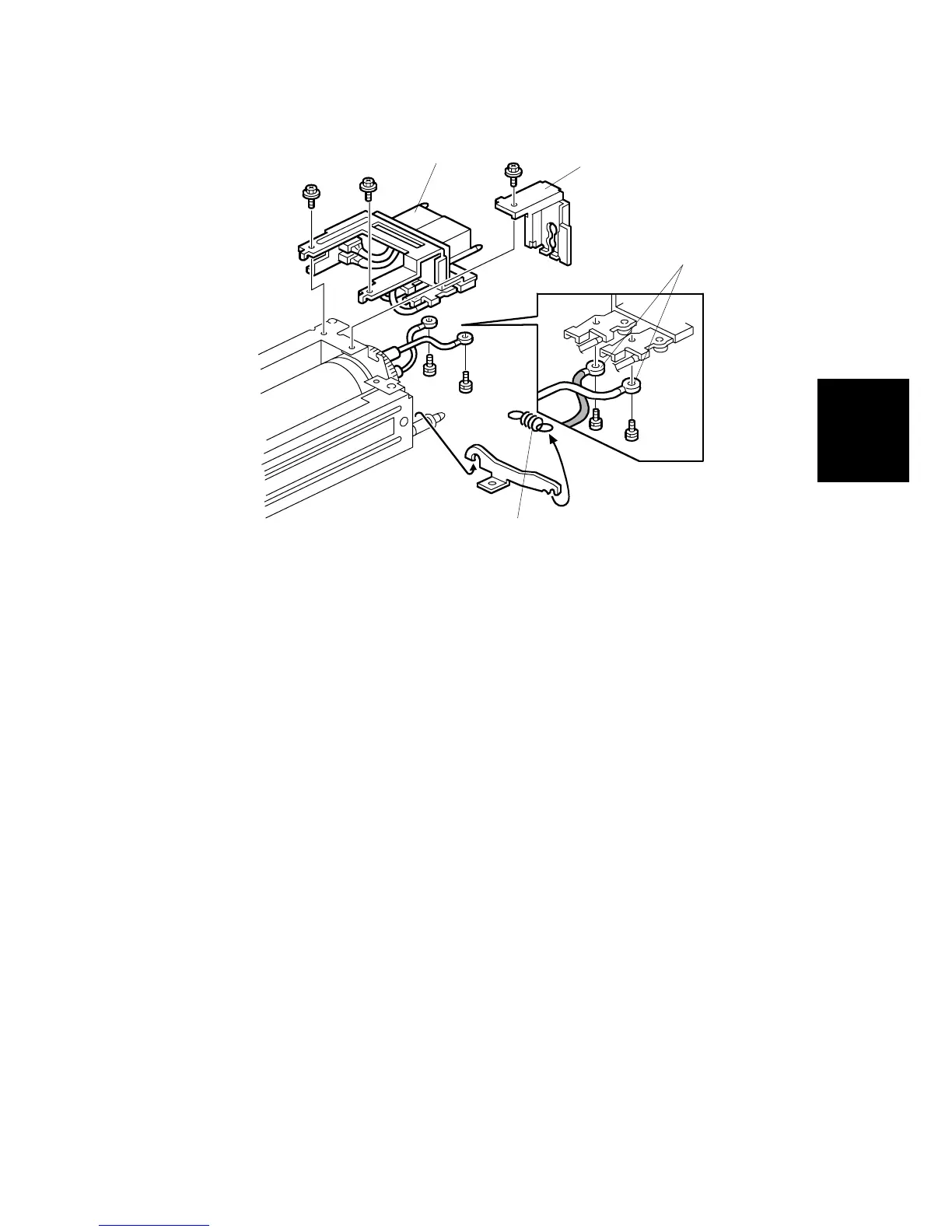

Right side
1. Two terminals [A] (! x2)
2. Spring [B]
3. Connector bracket [C] (! x2)
4. Bracket [D] (! x2)
Important
• To avoid breaking the fusing lamps, handle them with care.
• Avoid touching the lamps with bare hands.
• Note the top/bottom positioning of the fusing lamps as you remove them. The
sizes of the holes in the holder match the sizes of the ends of the 650 W
lamp (red) and 650 W lamp (brown).
5. Remove both fusing lamps.
B195R994A.WMF
[A]
[B]
[C]
[D]
