Ricoh B291 - Paper Feed Clutch Replacement

BY-PASS TRAY
SM 3-73 B291/B295/B296/B297
Replacement
Adjustment

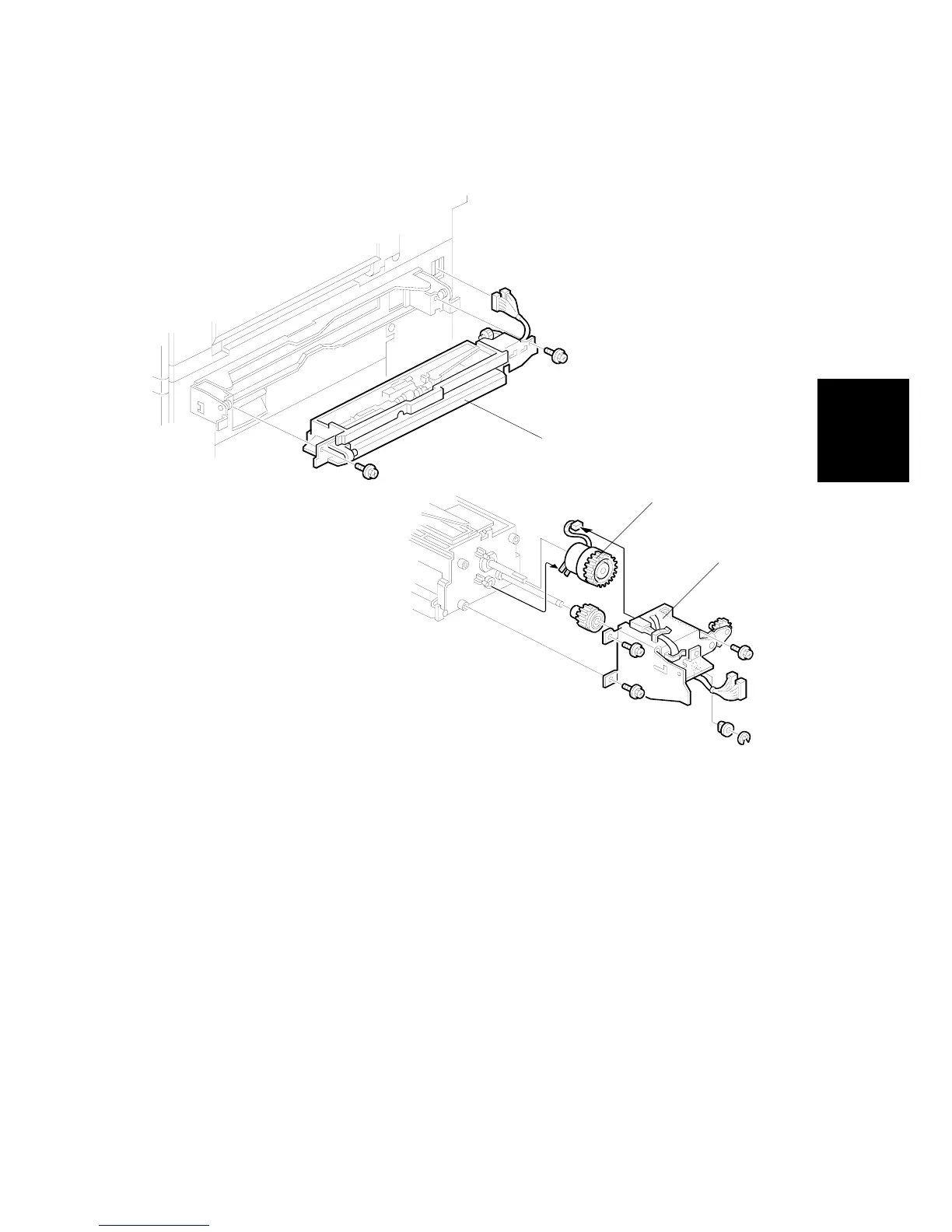

3.16.7 PAPER FEED CLUTCH REPLACEMENT
1. By-pass tray. (! 3.16.1)
2. Paper feed unit [A] (! x2, " x2)
3. Rear bracket [B] (! x4, # x1, bushing x1)
4. Paper feed clutch [C] (" x1)
B195R802.WMF
B195R803.WMF
[A]
[C]
[B]
