6.11.5 PAPER END DETECTION

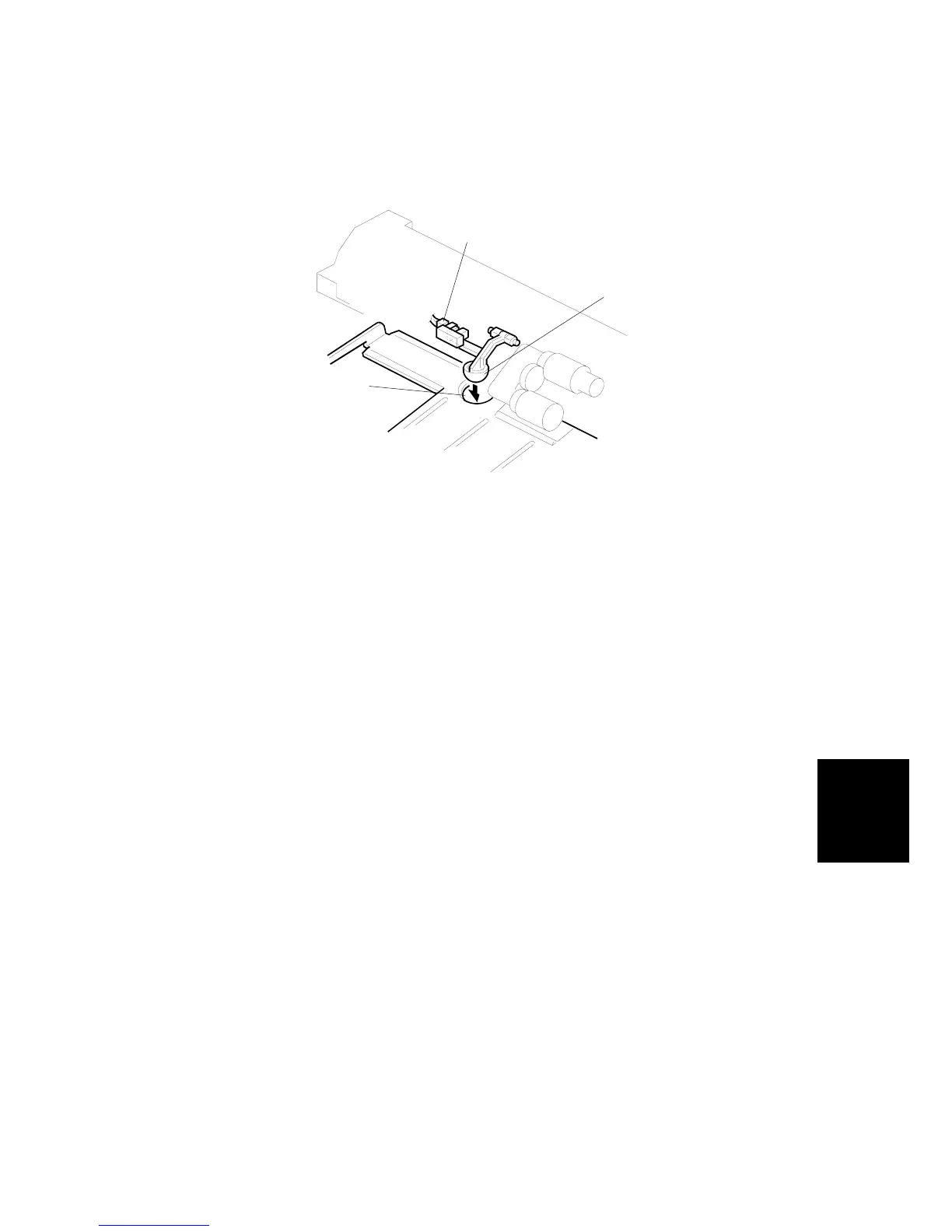

If there is paper in the paper tray, the paper end feeler [A] is raised by the paper
stack, and the paper end sensor [B] is deactivates.
When the paper tray runs out of paper, the paper end feeler drops into the cutout
[C] in the tray bottom plate and the paper end sensor is activated.
