Ricoh B291 - Feed;Development Motor

PAPER FEED
B291/B295/B296/B297 3-56 SM
3.14.9 FEED/DEVELOPMENT MOTOR
1. Rear lower cover (! x4) (!3.7.2)
2. Rear upper cover (! x4) (!3.7.1)
3. Tray lift motor (! 3.14.8)
4. Support [A] (! x2, harnesses x2)
5. Timing belt [B] (Raise arm to release tension on belt.)
6. Feed/development motor [C] (! x3, " x2)

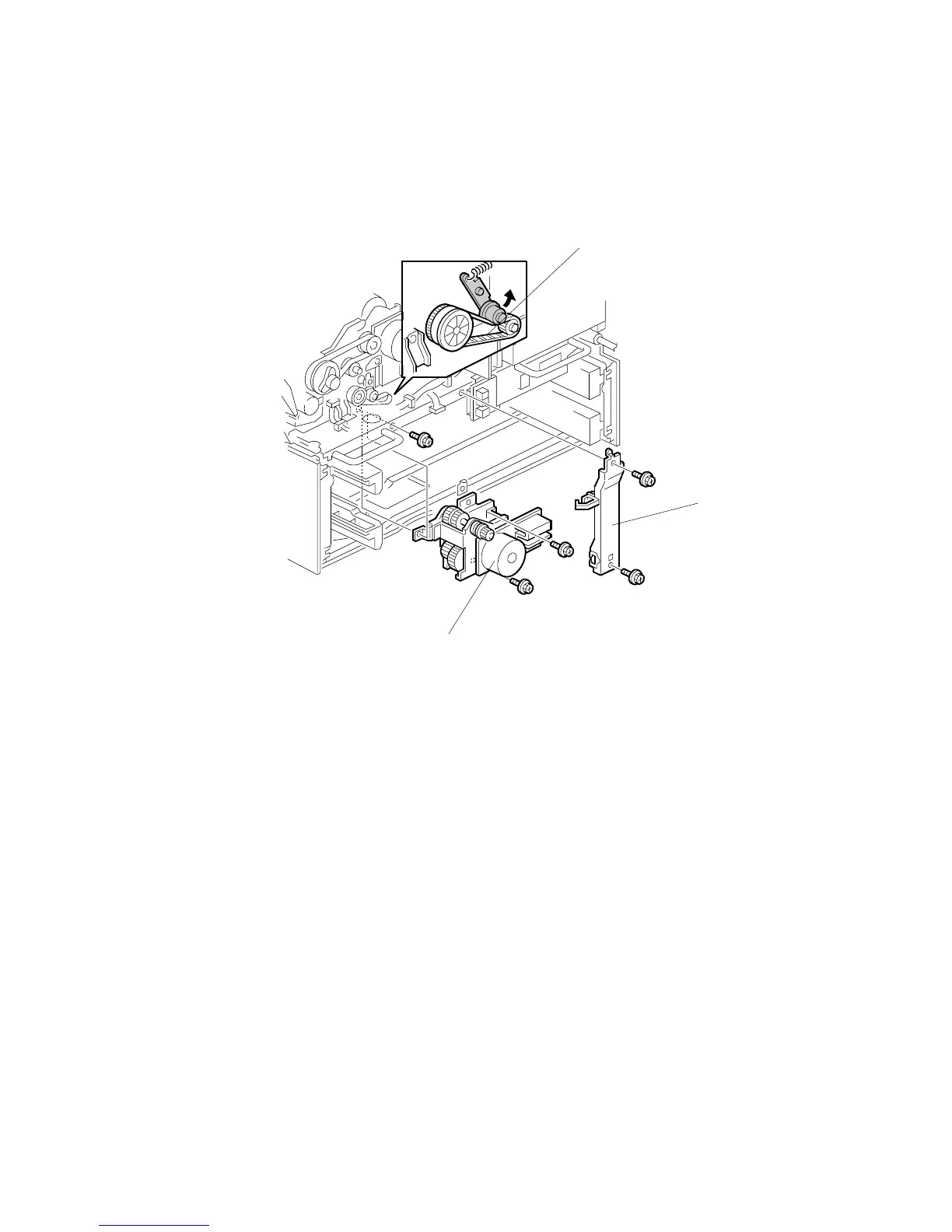

B195R985.WMF
[A]
[B]
[C]
