Ricoh B291 - Paper Size Sensor Board Replacement

BY-PASS TRAY
SM 3-71 B291/B295/B296/B297
Replacement
Adjustment
3.16.5 PAPER SIZE SENSOR BOARD REPLACEMENT

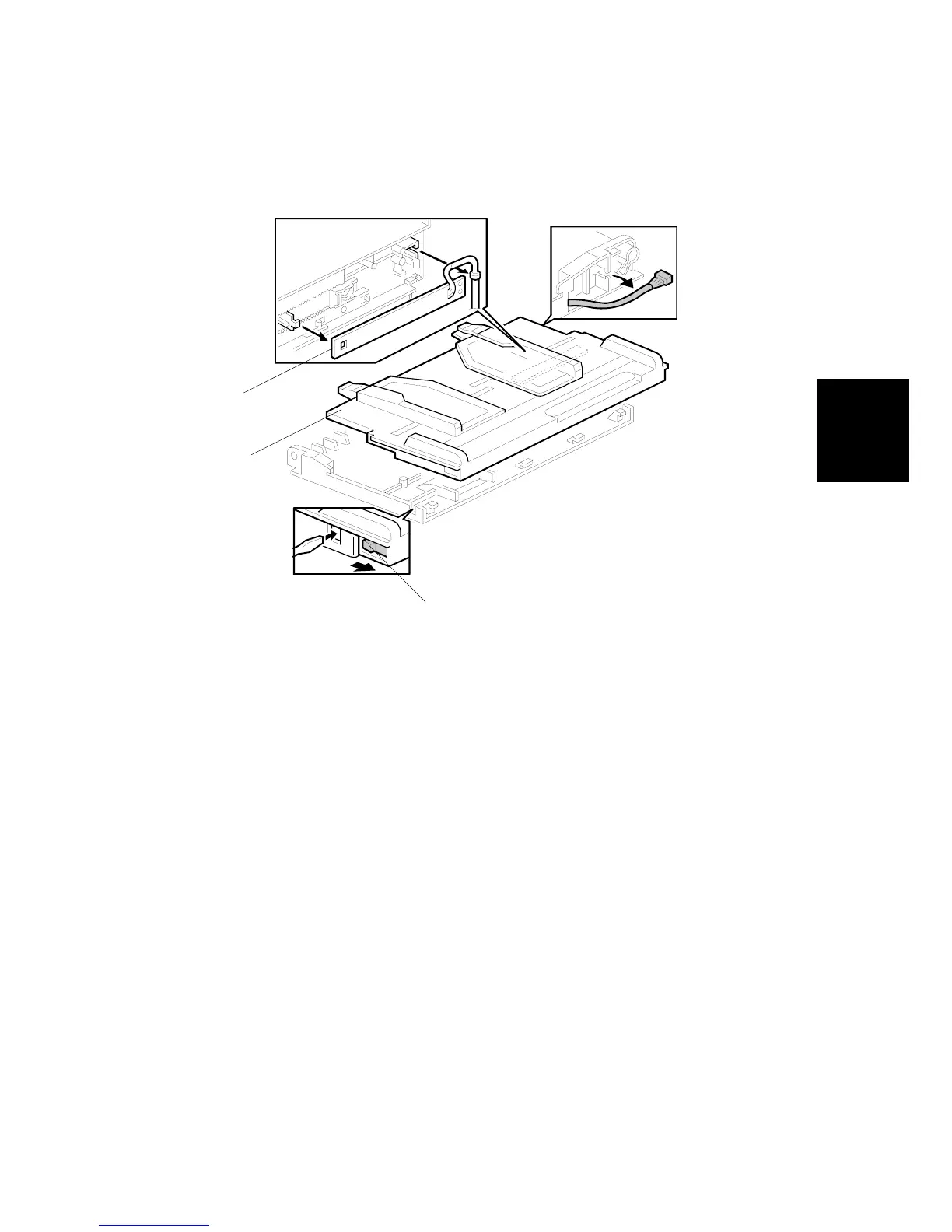

1. Hook [A]
2. Paper tray [B] (" x1).
3. Size sensor board [C].
NOTE: To avoid breaking the hook of the paper size sensor board, handle it
carefully during removal.
B195R980.WMF
[C]
[B]
[A]
