INVERTER /ORIGINAL SET SENSORS
B714 6 SM

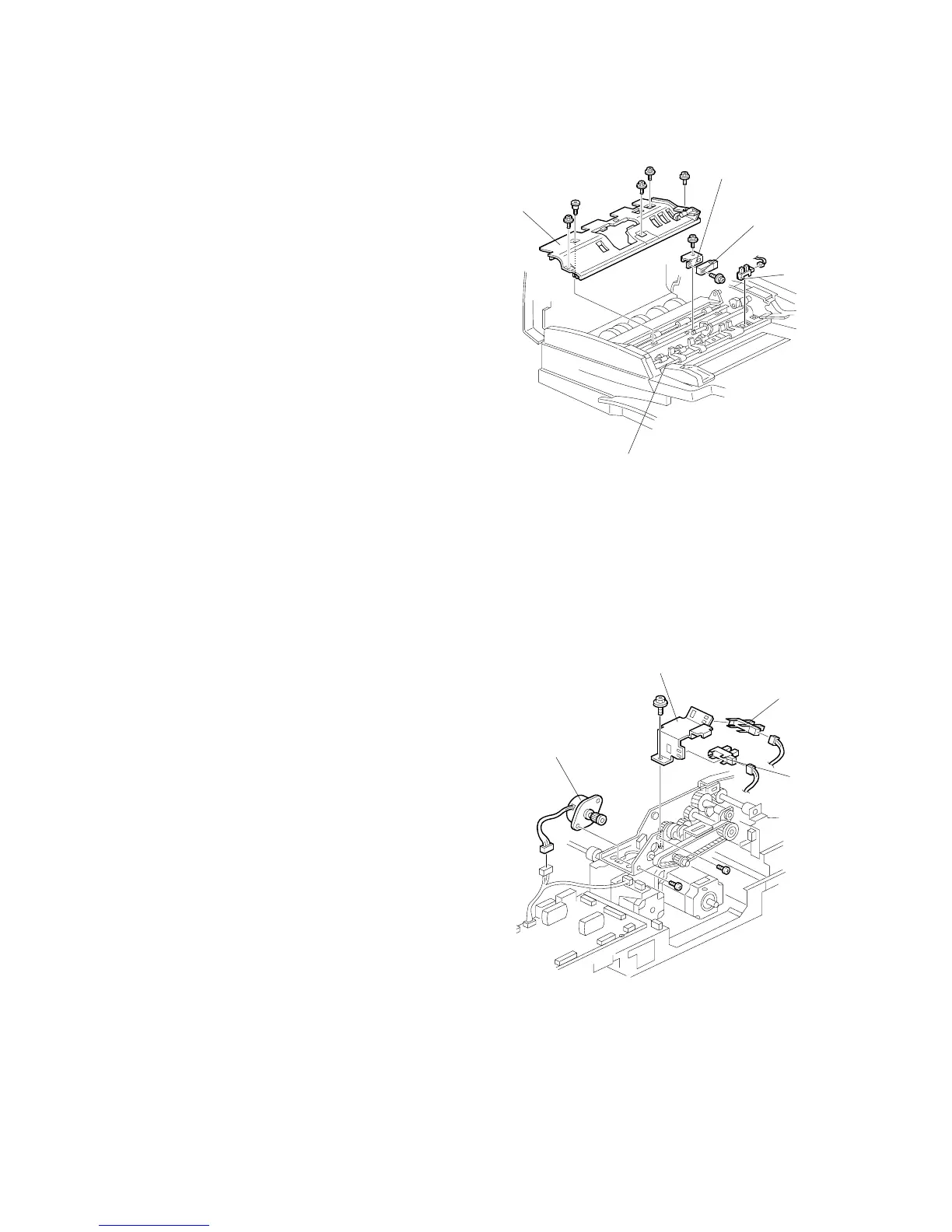

1.8 INVERTER /ORIGINAL SET SENSORS
Rear cover. (! 1.1)
[A]: Lower the original stopper by rotating
the pick-up motor
Original feed unit (! 1.2)
[B]: Feed guide plate (! x 4, stepped
screw)
NOTE: Raise the original tray before
you re-install the paper feed guide.
Separation roller, torque limiter (# x 1) (!
1.7)
[C]: Bracket (! x 1, " x 1)
[D]: Inverter sensor (! x 1)
[E]: Original set sensor (" x 1)
1.9 PICK-UP MOTOR/ORIGINAL STOPPER HP
SENSOR/PICK-UP HP SENSOR
Rear cover (! 1.1)
[A]: Pick-up motor (" x 1, ! x 2, Timing
belt)
[B]: Sensor bracket (" x 2, ! x 1)
[C]: Pick-up HP sensor
[D]: Original stopper HP sensor
B597R109.WMF
B597R114.WMF
[A]
[B]
[C]
[D]
[E]
[A]
[B]
[C]
[D]
