Ricoh B291 - Paper Limit Sensor Installation

PRINTER AND P/S OPTIONS
SM 9 D315
Printer/
Scanner Unit
D315
Paper Limit Sensor Installation
NOTE: If the optional bridge unit is installed, you cannot install the paper limit
sensor. Proceed to the Paper Sensor Installation (next page).

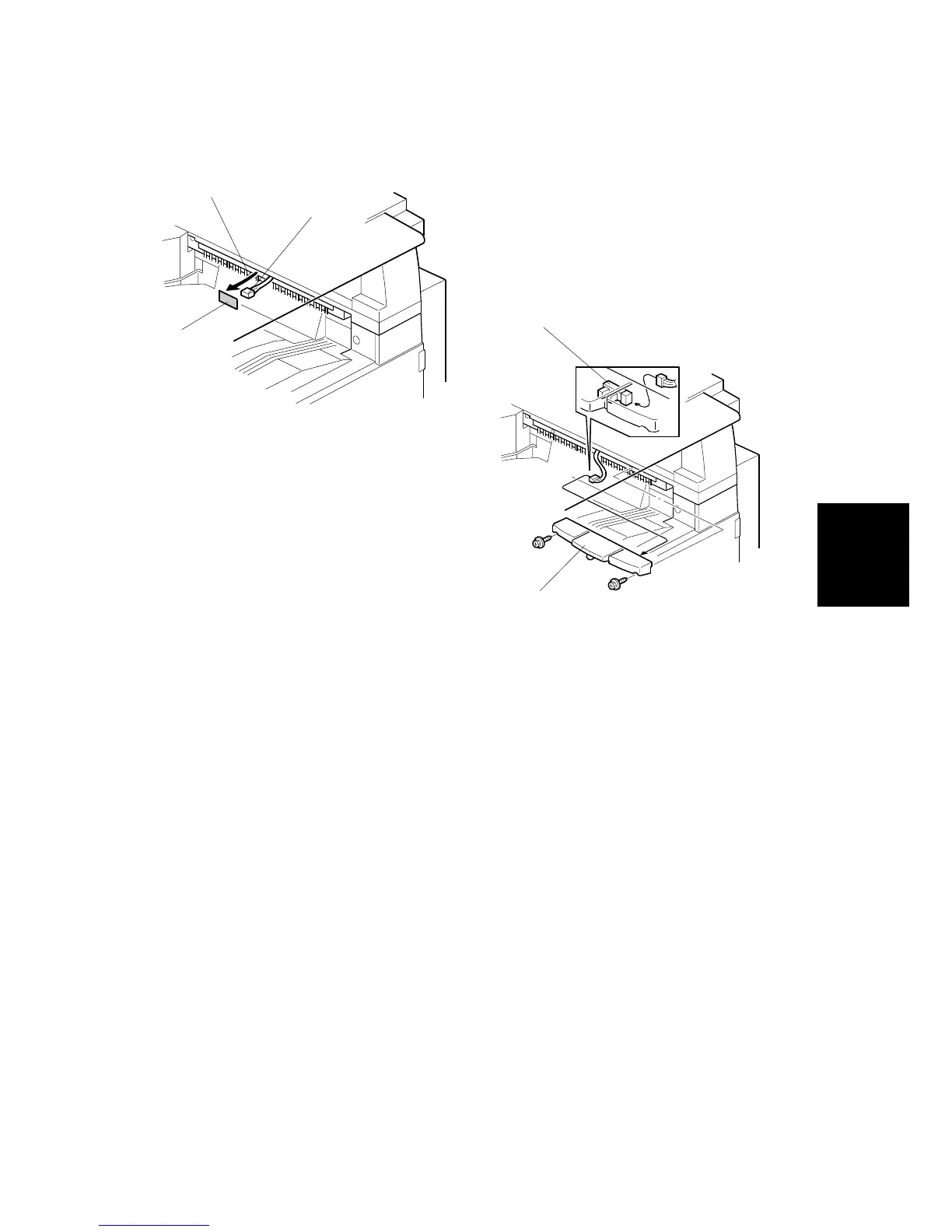

1. Peel off the black tape [A] from the anti-static brush [B], then pull out the cable
[C].
2. Connect the cable to the sensor [D].
NOTE: Push the connector into the hole so it is not visible.
3. Install the paper limit sensor unit [E] ( x 2).
B654I901.WMF
B654I902.WMF
[A]
[C]
[B]
[D]
[E]
