LASER UNIT
SM 3-27 B291/B295/B296/B297
Replacement
Adjustment
3.10.5 LD UNIT
1. Laser unit (! 3.10.2)

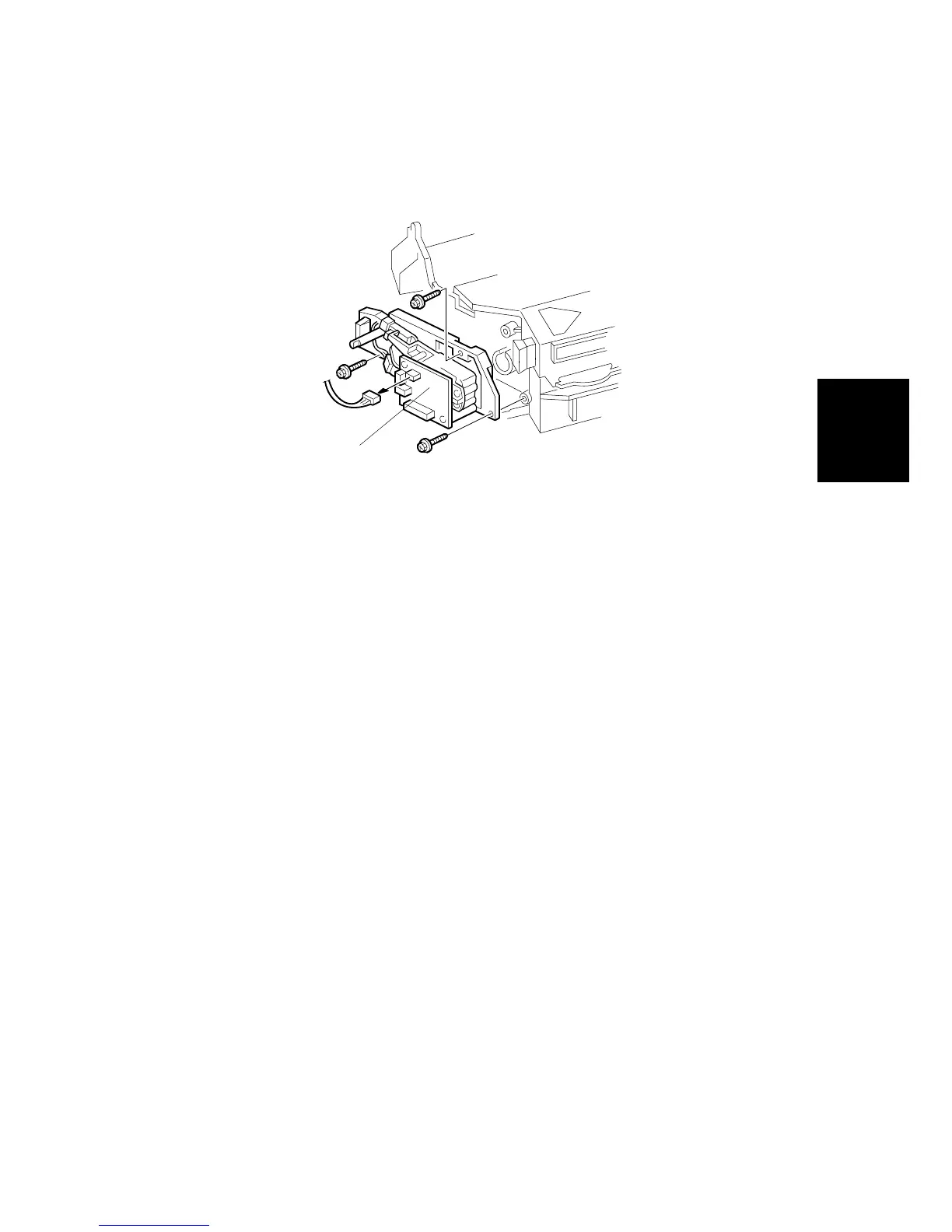

2. LD unit [A] (! x3, " x1)
NOTE: To avoid damaging the LD board, hold it securely when disconnecting
the connectors. Hold the laser unit casing.
3. After replacing the LD board, perform SP 2-109 to adjust the laser beam pitch
(described on the next page).
B195R513.WMF
[A]
To Next Page
