Ricoh B291 - Main Motor

DRIVE AREA
B291/B295/B296/B297 3-78 SM
3.18.2 MAIN MOTOR
Remove:
• Rear upper cover (!3.7.1)
• High voltage power supply, flywheel (!3.18.1)
1. Remove the main cooling fan [A] (! x2)
2. Timing belt [B] x1
3. Bracket [C] (! x3)
4. Main motor [D] (" x2, ! x3)

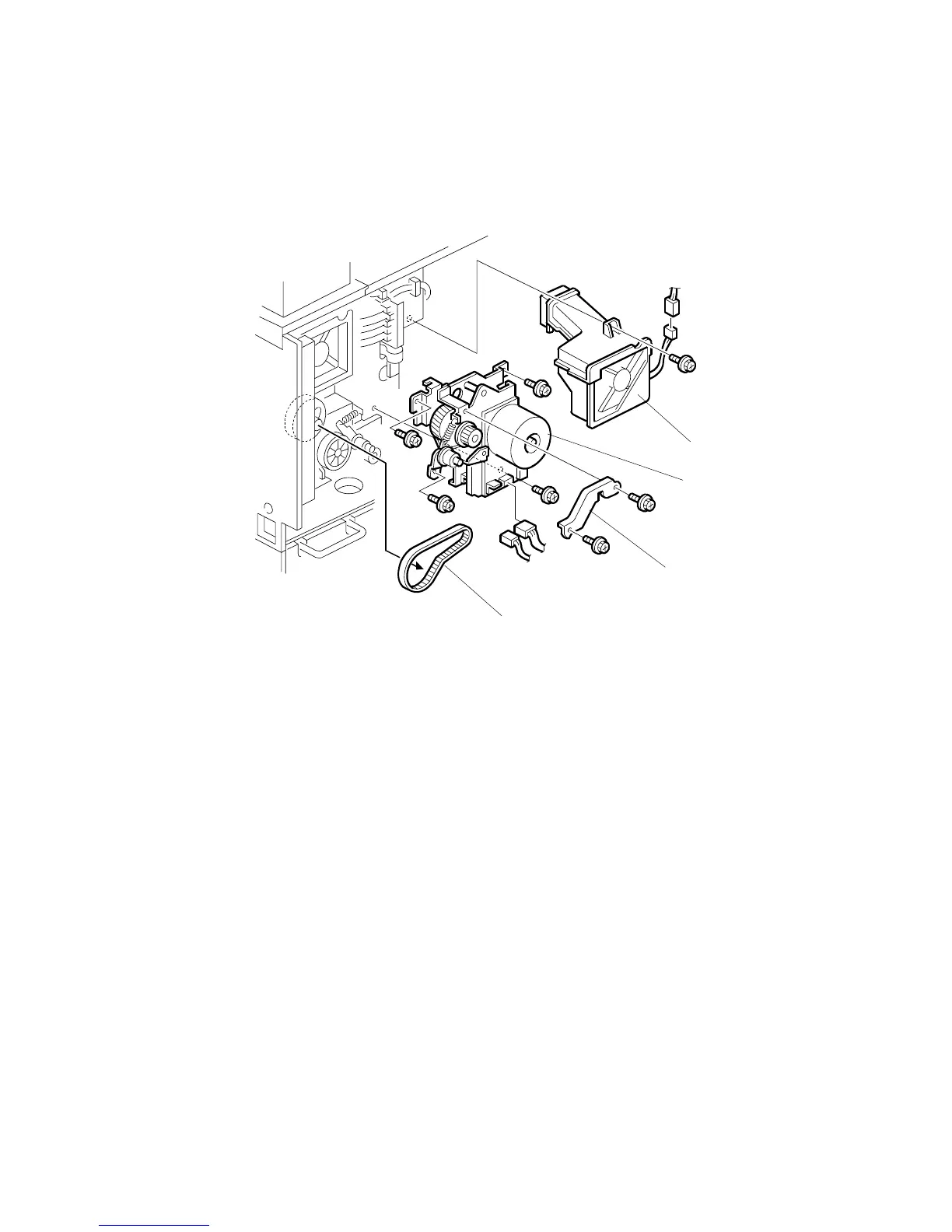

B195R924.WMF
[A]
[B]
[C]
[D]
