Ricoh B291 - Bluetooth Unit 3245 (B)

OTHER OPTIONS
SM 19 D315
Printer/
Scanner Unit
D315
1.3.3 BLUETOOTH UNIT 3245 (B826)
Accessories
Check the accessories and their quantities against the following list:
Description Q'ty
1. Bluetooth Unit B736............................................................ 1
2. PCI Card............................................................................. 1
3. Cap ..................................................................................... 1
CAUTION
TURN OFF THE MAIN POWER SWITCH AND DISCONNECT THE POWER SUPPLY CORD.
NOTE: You can only install one of these network interfaces: IEEE 802.11b
(Wireless LAN), IEEE1284 (Parallel/Centronics), or Bluetooth.

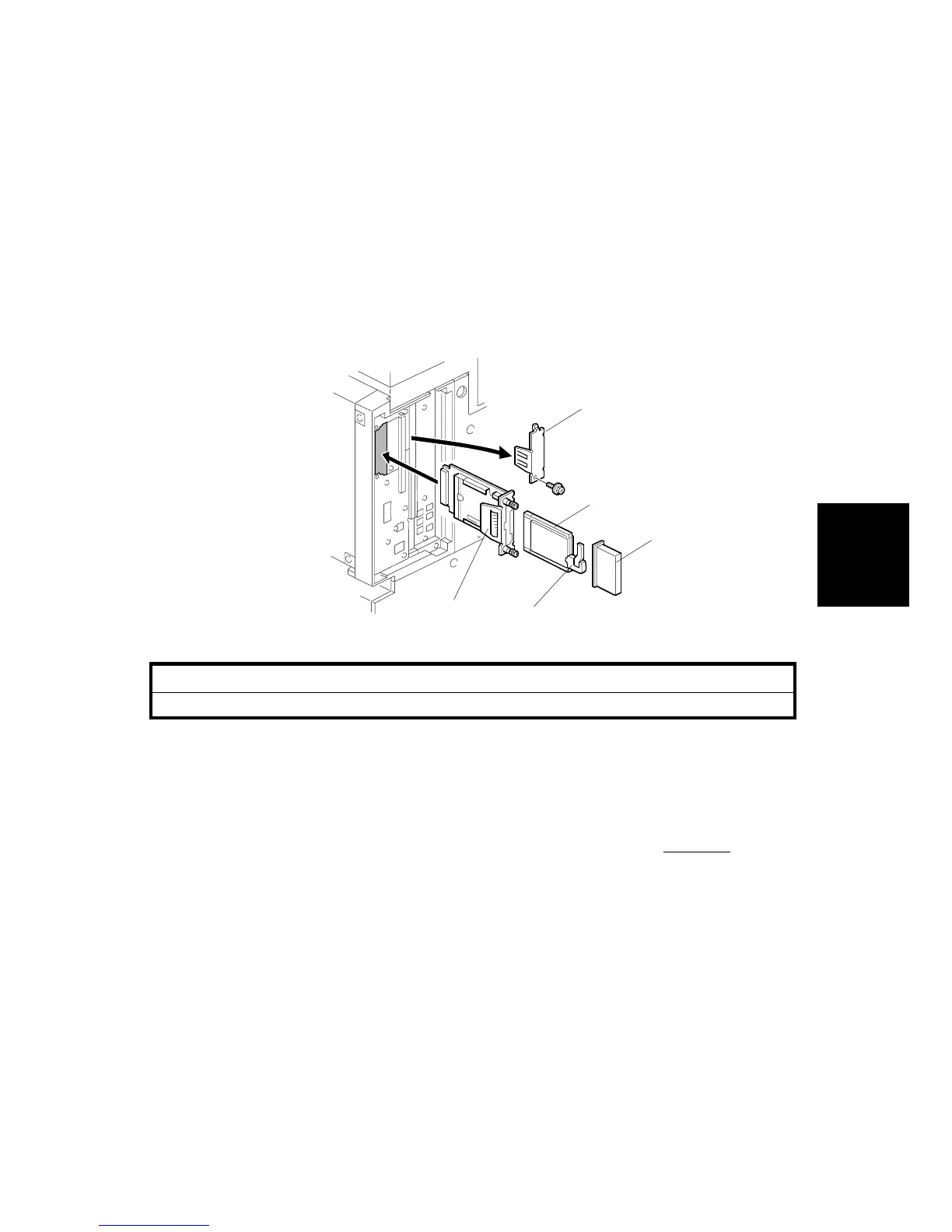

1. Remove the cover [A] of board Slot 1 or 2 ( x1).
2. Attach the conductive tape [B] to the Bluetooth card.
Important: Attach the tape to the card on the side of the card opposite
to the
position shown at [B]
3. Attach the interface board [C] to the controller board ( x2 knob screws).
NOTE: Use a screwdriver to tighten the knob-screws. Do not tighten manually,
because this can disconnect the board.
4. Install the Bluetooth card [D] in the slot in the Bluetooth unit.
5. Attach the antenna cap [E].
B783I907.WMF
[A]
[B]
[C]
[D]
[E]
