ENTRANCE AND PAPER LIMIT SENSOR REPLACEMENT
SM 7 B544
1 Bin Tray
B544
3.3 ENTRANCE AND PAPER LIMIT SENSOR
REPLACEMENT
1. Remove the front and upper covers.

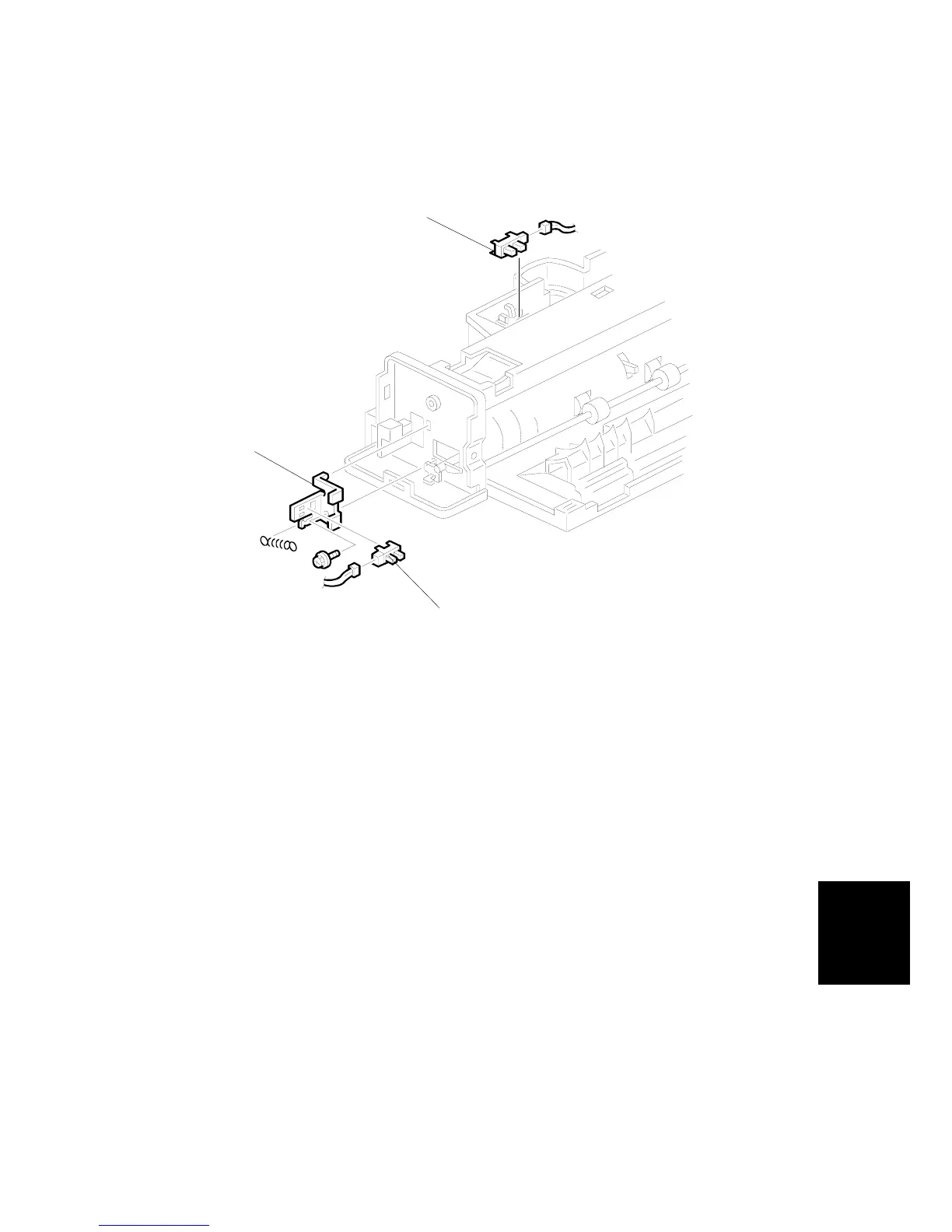

Paper Limit Sensor
2. Replace the paper limit sensor [A] (1 connector).
Entrance Sensor
2. Remove the sensor bracket [B] (1 screw, 1 spring).
3. Replace the entrance sensor [C] (1 connector).
B376R502.WMF
[C]
[B]
[A]
