ORIGINAL FEED BELT
SM 3 B714
Auto Reverse
Document
Feeder B714

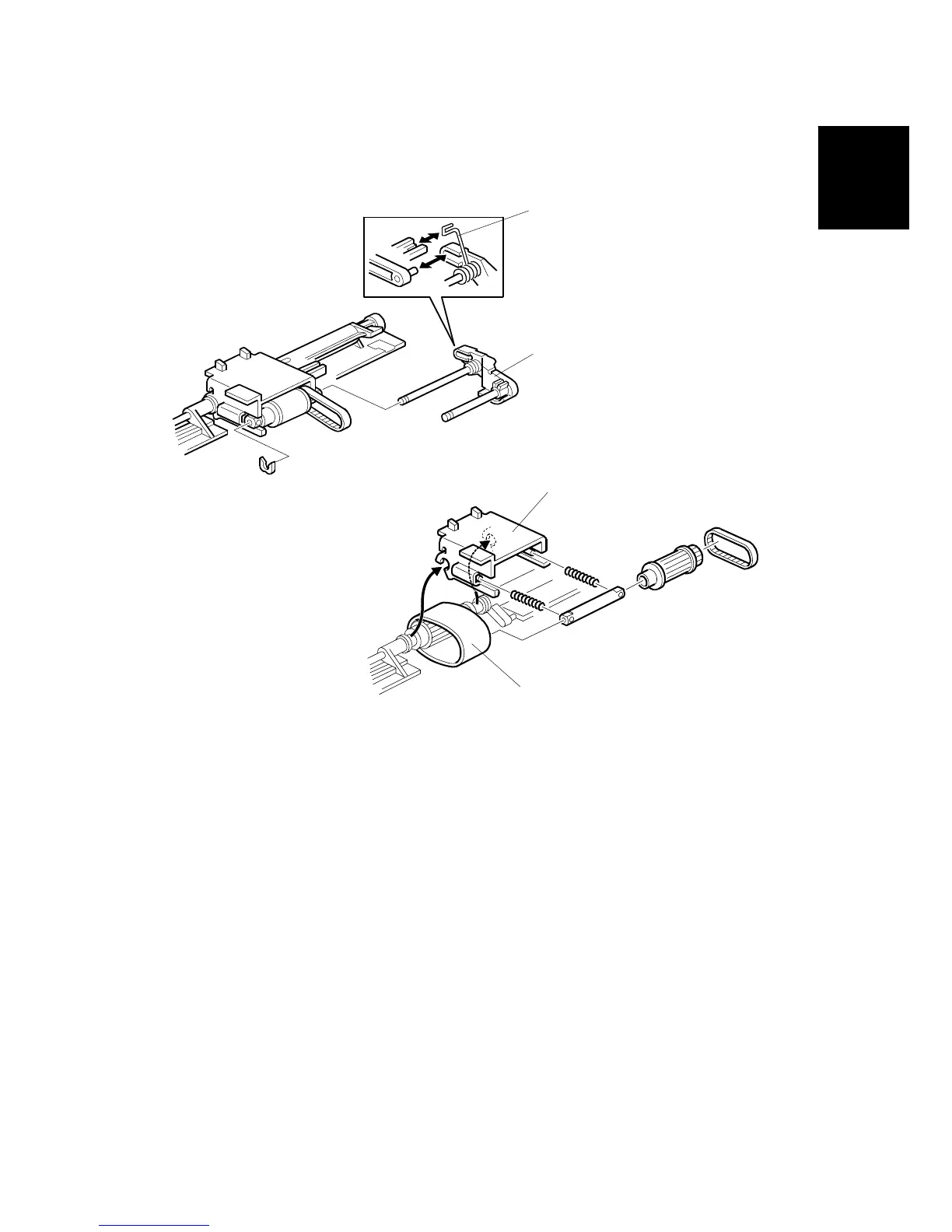

1.4 ORIGINAL FEED BELT
Original feed unit and original pick-up roller (! 1.2, 1.3)
[A]: Shaft (# x 1)
NOTE: Before removing the shaft, note carefully the positioning of the spring
[B]. This must be reset during re-installation.
[C]: Feed belt cover (Timing belt, gear, shaft, springs x 2)
NOTE: Do not lose the springs.
[D]: Original feed belt
B597R104.WMF
B597R103.WMF
[A]
[B]
[C]
[D]
To Next Page
