PUNCH UNIT INSTALLATION (B377)
B291/B295/B296/B297 SM
1-40
1.8.2 PUNCH UNIT INSTALLATION PROCEDURE
!CAUTION
Switch off the main machine and unplug its power cord. If the Two-Tray
Finisher is installed, disconnect it and pull it away from the machine.
(!1.7)
1. Unpack the punch unit and remove all tapes and shipping retainers.
2. Open the front door and remove the rear cover [A] (! x4).
3. Remove the bracket [B] (! x2) and paper guide [C] (! x 1).

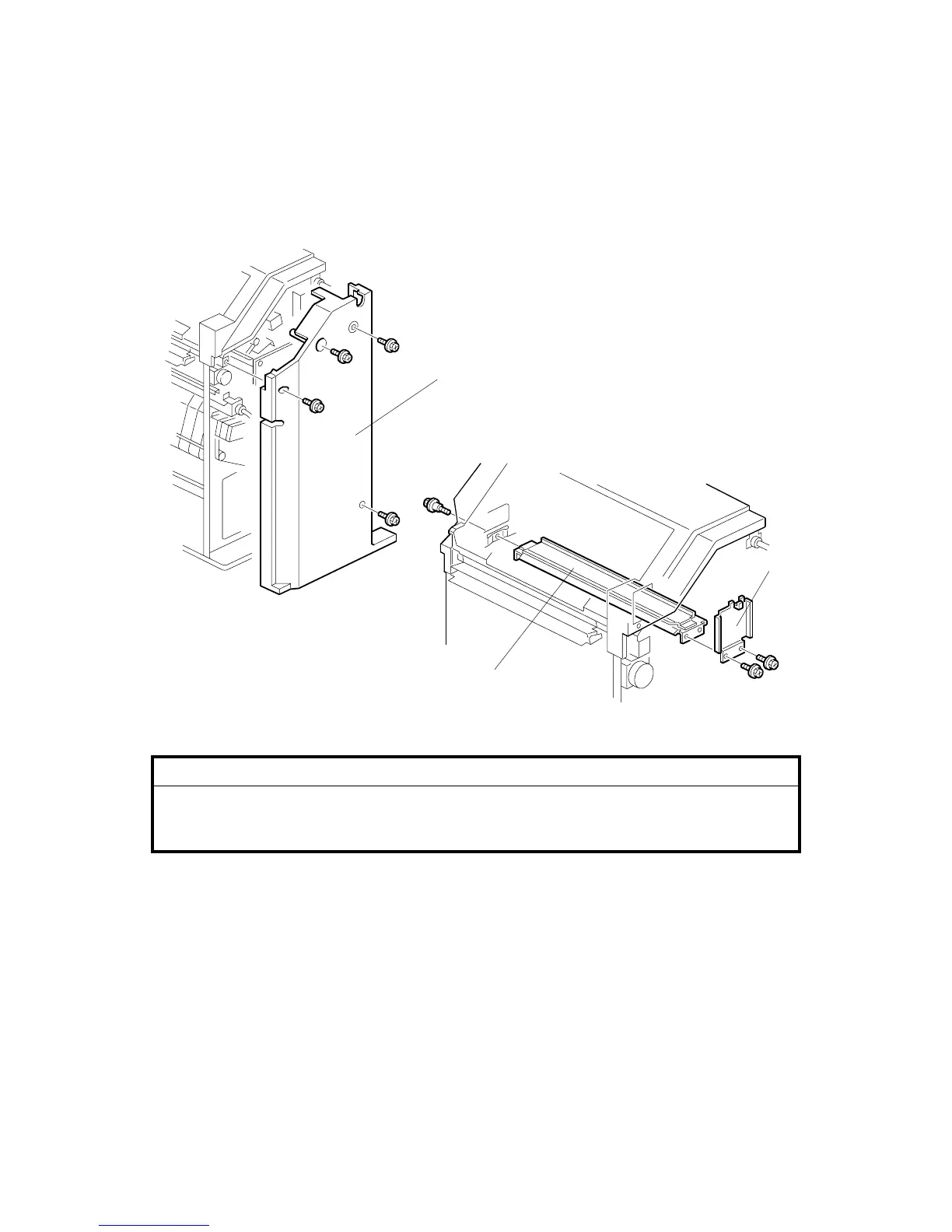

B377I102.WMF
B377I103.WMF
[B]
[C]
[A]
To Next Page
