KEY COUNTER INSTALLATION
SM B291/B295/B296/B297
1-63
Installation
1.14 KEY COUNTER INSTALLATION
!CAUTION
Unplug the machine power cord before starting the following procedure.

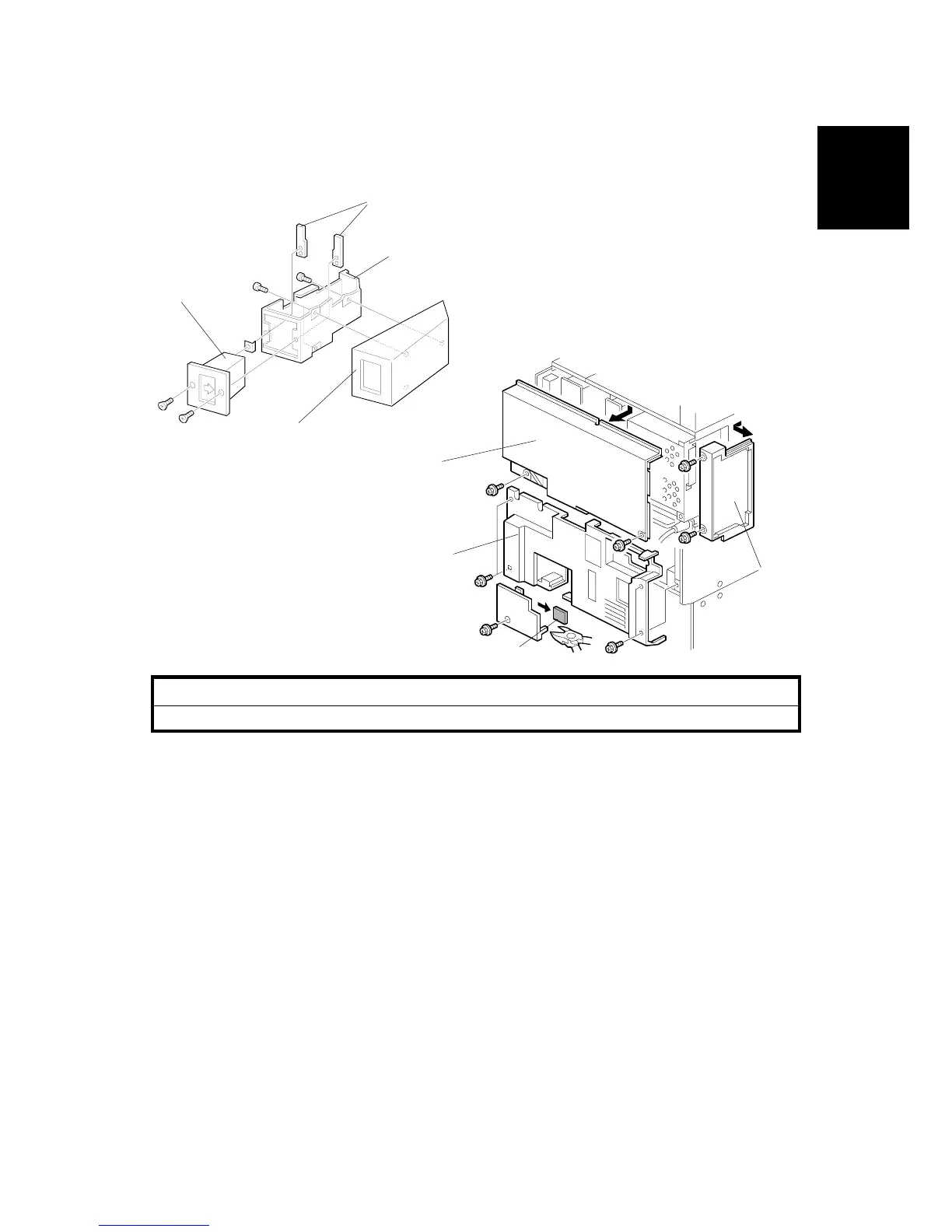

1. Hold the key counter plates [A] on the inside of the key counter bracket [B] and
insert the key counter holder [C]
2. Secure the key counter holder to the bracket (! x2).
3. Attach the key counter cover [D] (! x2).
4. Remove the connector cover [E].
5. Remove the knockout [F] from the connector cover.
6. Remove the rear upper cover [G] (! x4) and left corner cover [H] (! x2).
A683I518.WMF
B543I001.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
To Next Page
