SCANNER UNIT
B291/B295/B296/B297 3-12 SM
3.9.4 LENS BLOCK, SBU ASSEMBLY
1. ARDF (! 3.9.1)
2. Exposure glass and DF exposure glass (!3.9.2)
3. Lens cover [A] (! x4)
4. Flexible cable [B] (" x1)
5. Lens block assembly [C] (! x4)
NOTE: The elements of the lens block assembly have been factory adjusted
and paint locked at 8 points. Do not attempt to replace these items.
Replace the unit.
6. Perform scanner and printer copy adjustments (! 3.21)

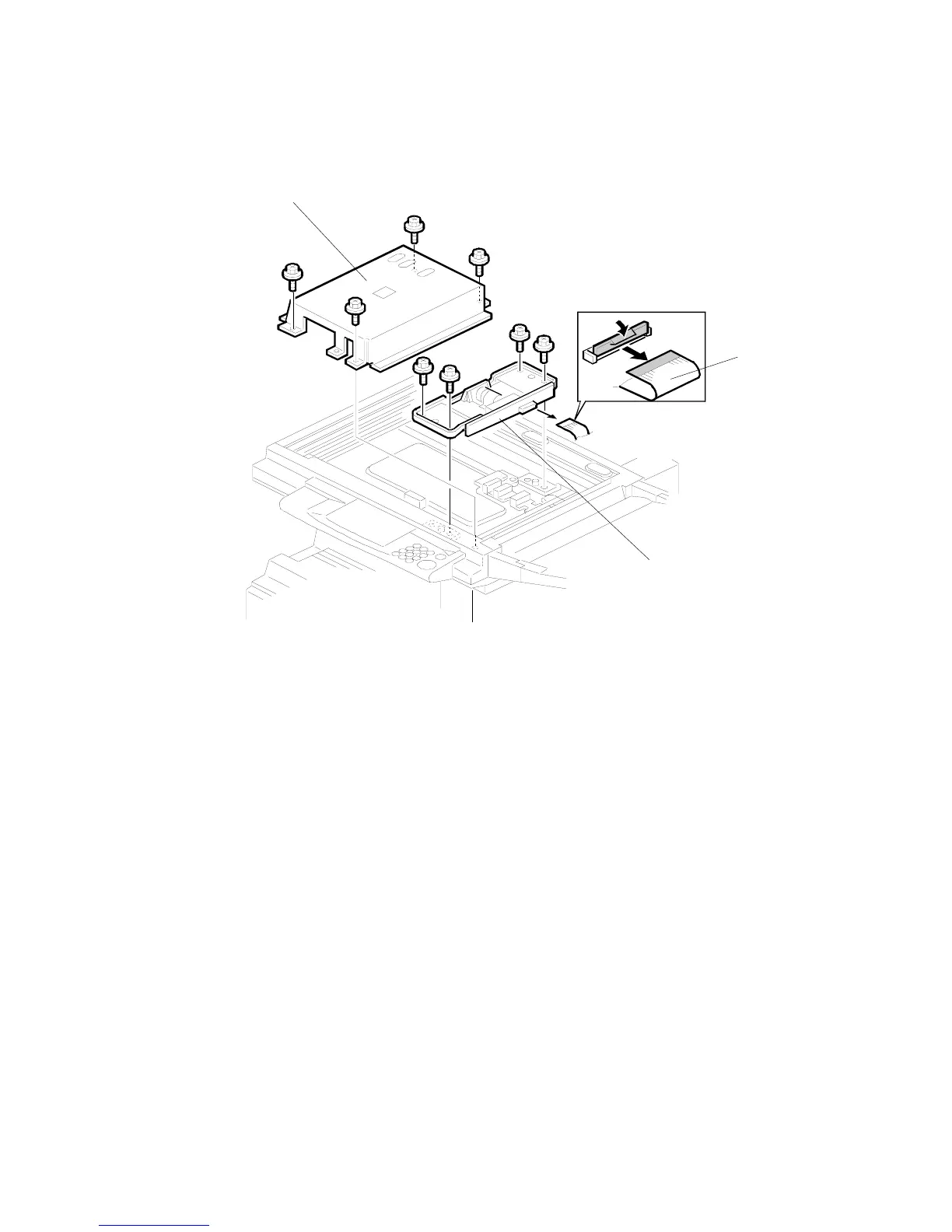

B195R910.WMF
