PRINTED CIRCUIT BOARDS
SM 3-83 B291/B295/B296/B297
Replacement
Adjustment
3.19.2 HIGH VOLTAGE POWER SUPPLY
1. Rear upper cover (! 3.7.1)

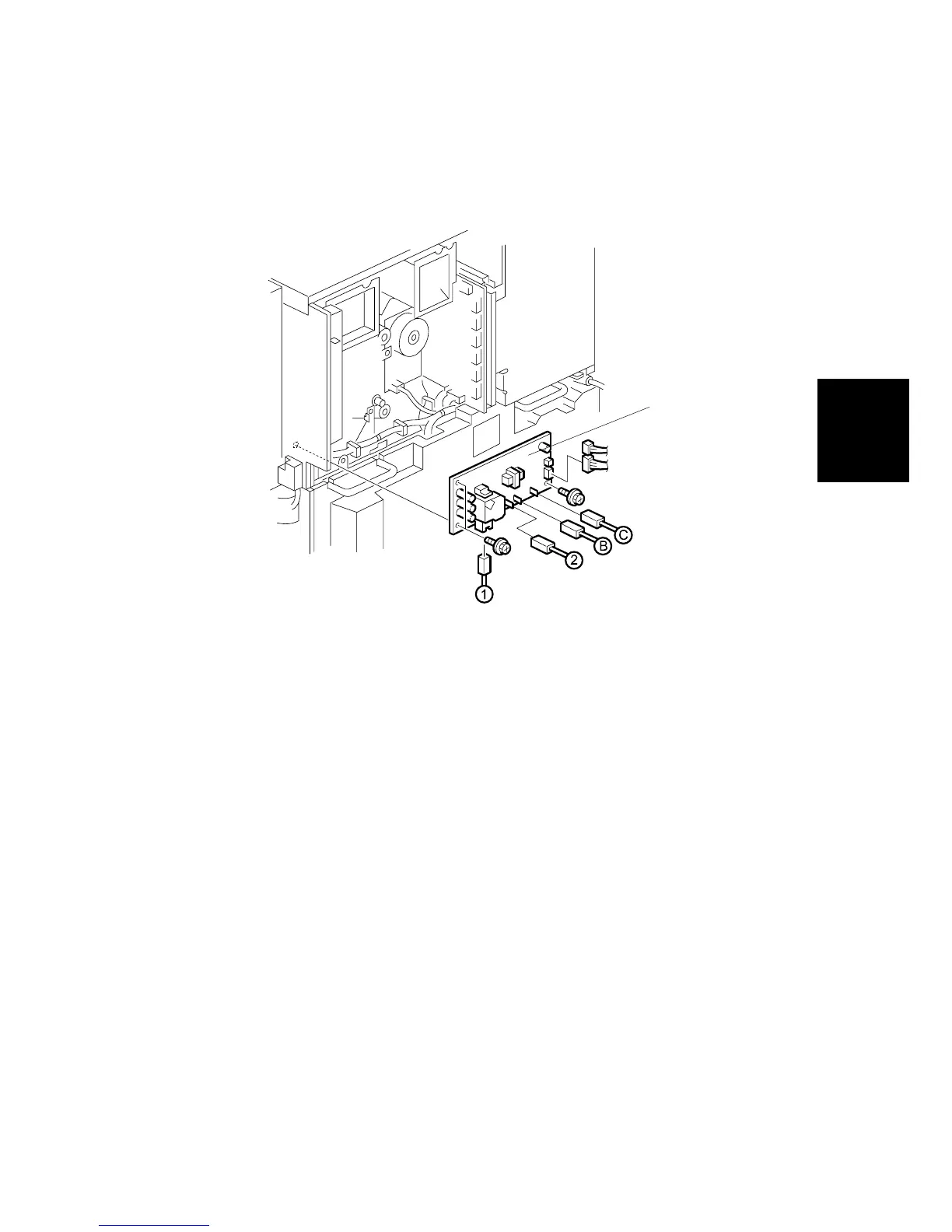

2. High voltage power supply [A] (! x3, " x6)
B195R820.WMF
[A]
