JUNCTION GATE MECHANISM
SM 5 B538
Bridge Unit
B538
2. DETAILED DESCRIPTION
2.1 JUNCTION GATE MECHANISM
Depending on the selected mode, the copies are directed up or down by the
junction gate [A], which is controlled by the junction gate solenoid [B].
When the upper tray is selected, the junction gate solenoid turns on and the paper
is sent to the upper tray through the upper exit roller [C].
When the left tray or the finisher is selected, the junction gate stays off and the
paper is sent to the left tray or the finisher through the transport rollers [D] and the
left exit roller.

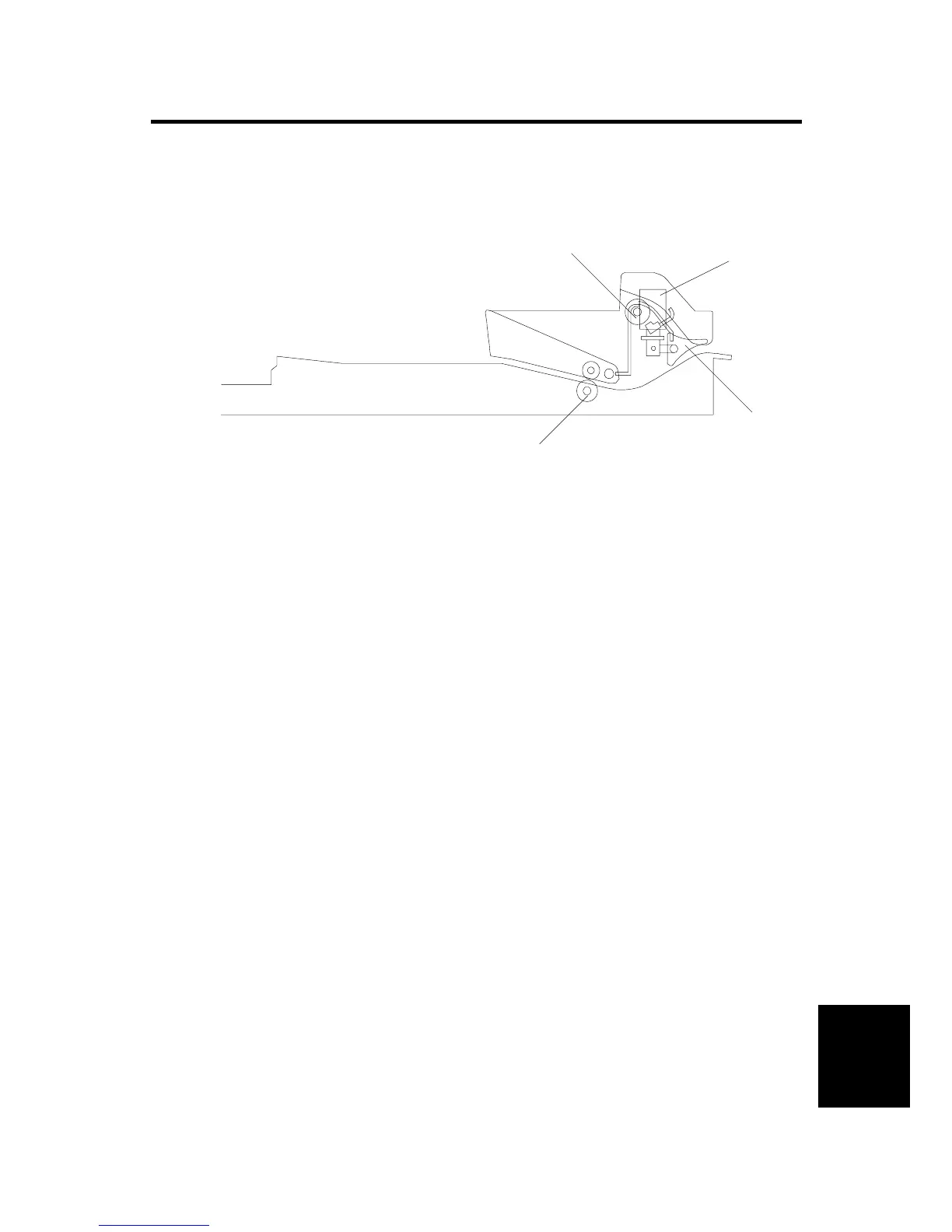

A688D500.WMF
[C]
[B]
[A]
[D]
