SCANNER UNIT
B291/B295/B296/B297 3-18 SM
3.9.10 SCANNER WIRE
1. ARDF (! 3.9.1)
2. Exposure glass (!3.9.2)
3. Scanner exterior panels and operation panel (!3.9.3)

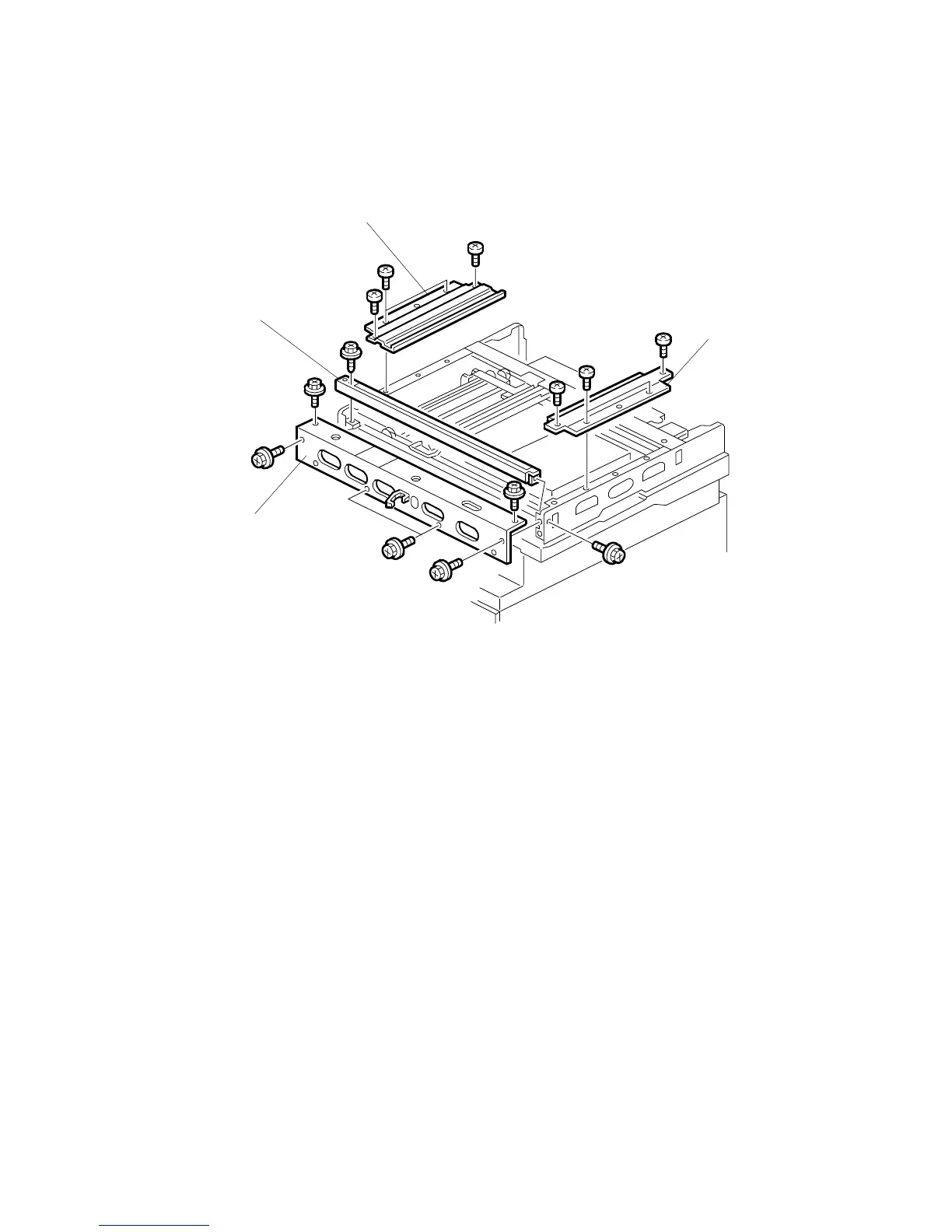

Front wire:
4. Left stay [A] (! x5)
5. Right stay [B] (! x5)
6. Front stay [C] (! x6)
7. Front scanner rail [D] (! x2)
8. To replace the scanner wire, see page 3-20.
B195R916.WMF
[A]
[B]
[C]
[D]
