SCANNER UNIT
SM 3-19 B291/B295/B296/B297
Replacement
Adjustment

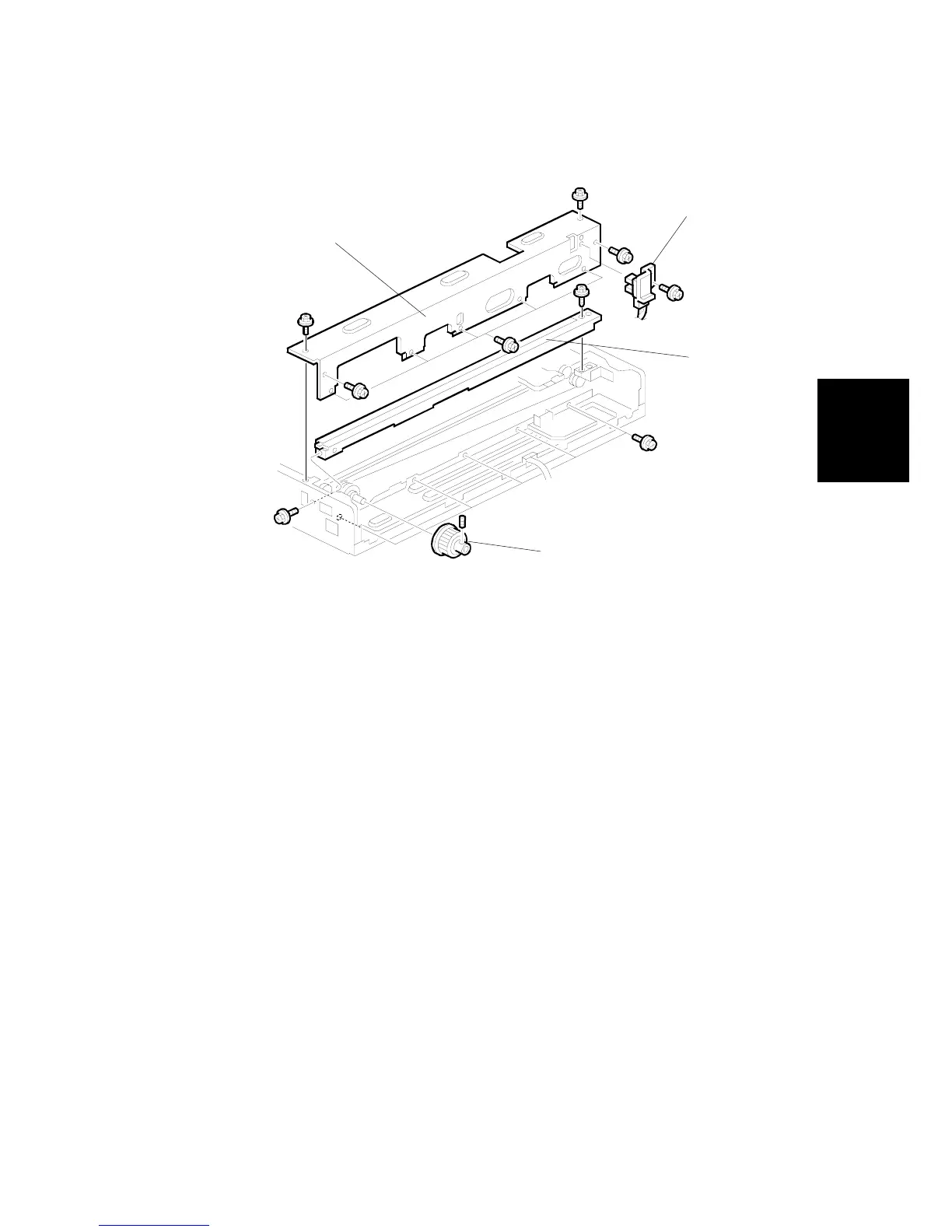

Rear wire:
1. Scanner HP sensor bracket [A] (! x1)
2. Scanner motor (!3.9.8)
3. Rear bracket [B] (! x9)
4. Rear scanner rail [C] (! x2)
5. Scanner drive pulley [D] (! x1)
B195R917.WMF
[C]
[D]
[B]
[A]
