Ricoh B291 - Lamp Stabilizer and Scanner Motor Drive Board

SCANNER UNIT
SM 3-17 B291/B295/B296/B297
Replacement
Adjustment
3.9.9 LAMP STABILIZER AND SCANNER MOTOR DRIVE BOARD
1. ARDF (! 3.9.1)
2. Scanner rear cover (!3.9.3)
3. Rear bracket [A] (! x5, " x2)
4. Lamp stabilizer [B] (" x2, Standoffs x3)
5. Scanner motor drive board [C] (" x2, ! x2)

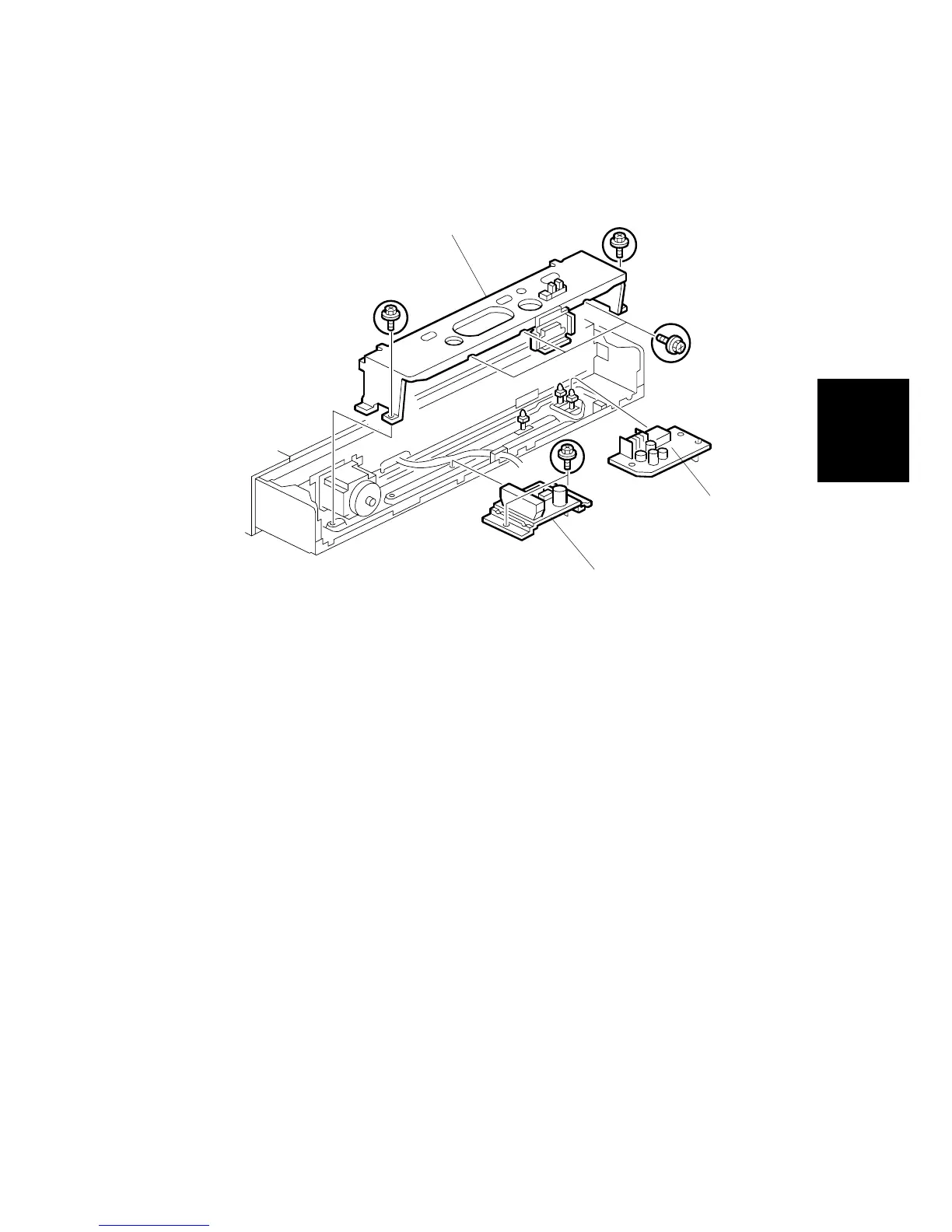

B195R915.WMF
[A]
[B]
[C]
