DUPLEX UNIT
SM 3-75 B291/B295/B296/B297
Replacement
Adjustment
3.17.2 DUPLEX ENTRANCE SENSOR REPLACEMENT
1. Duplex unit cover (! 3.17.1)
2. Sensor holder [A] (! x1)
3. Entrance sensor [B] (" x1)

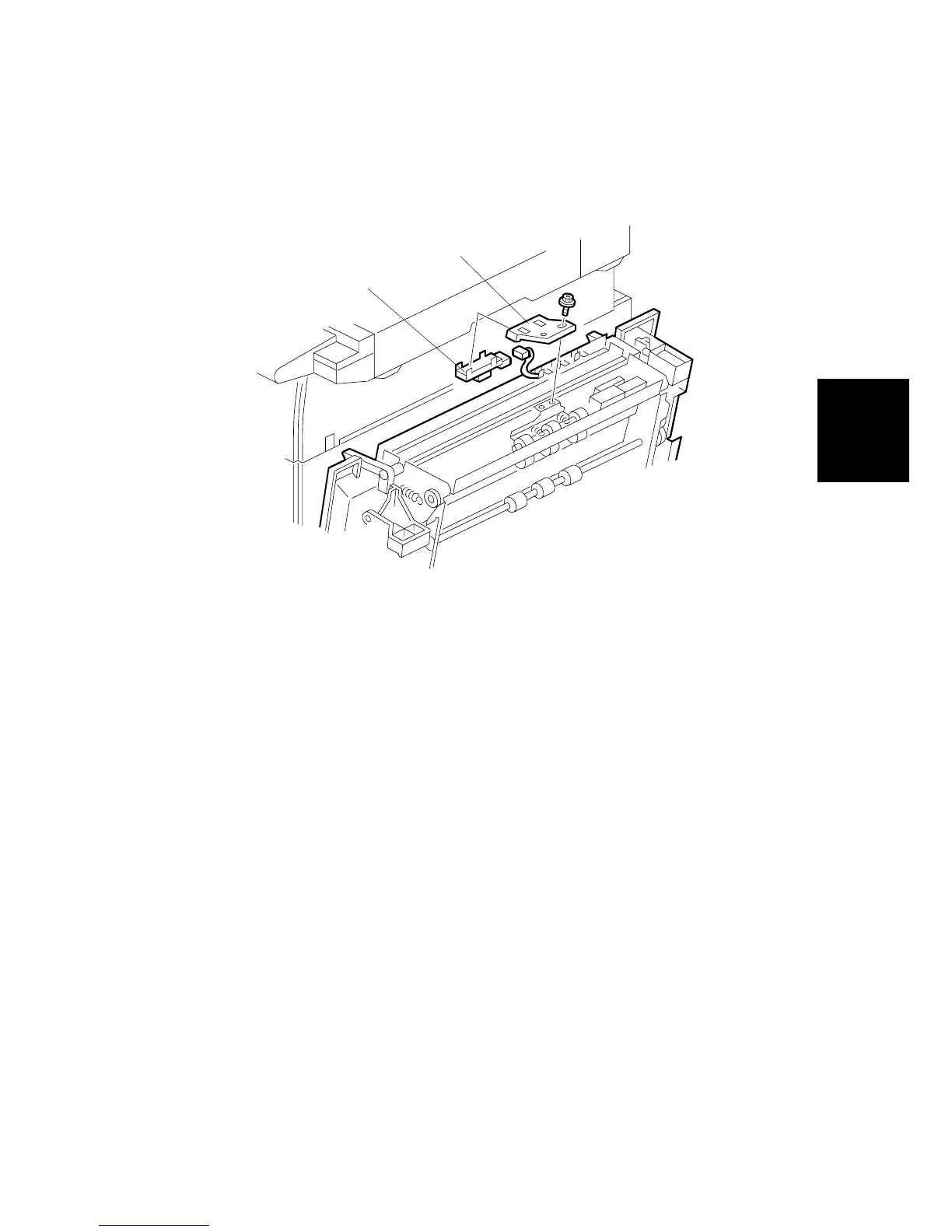

B195R805.WMF
[A]
[B]
