Ricoh B291 - Toner Supply Motor

DRIVE AREA
B291/B295/B296/B297 3-80 SM

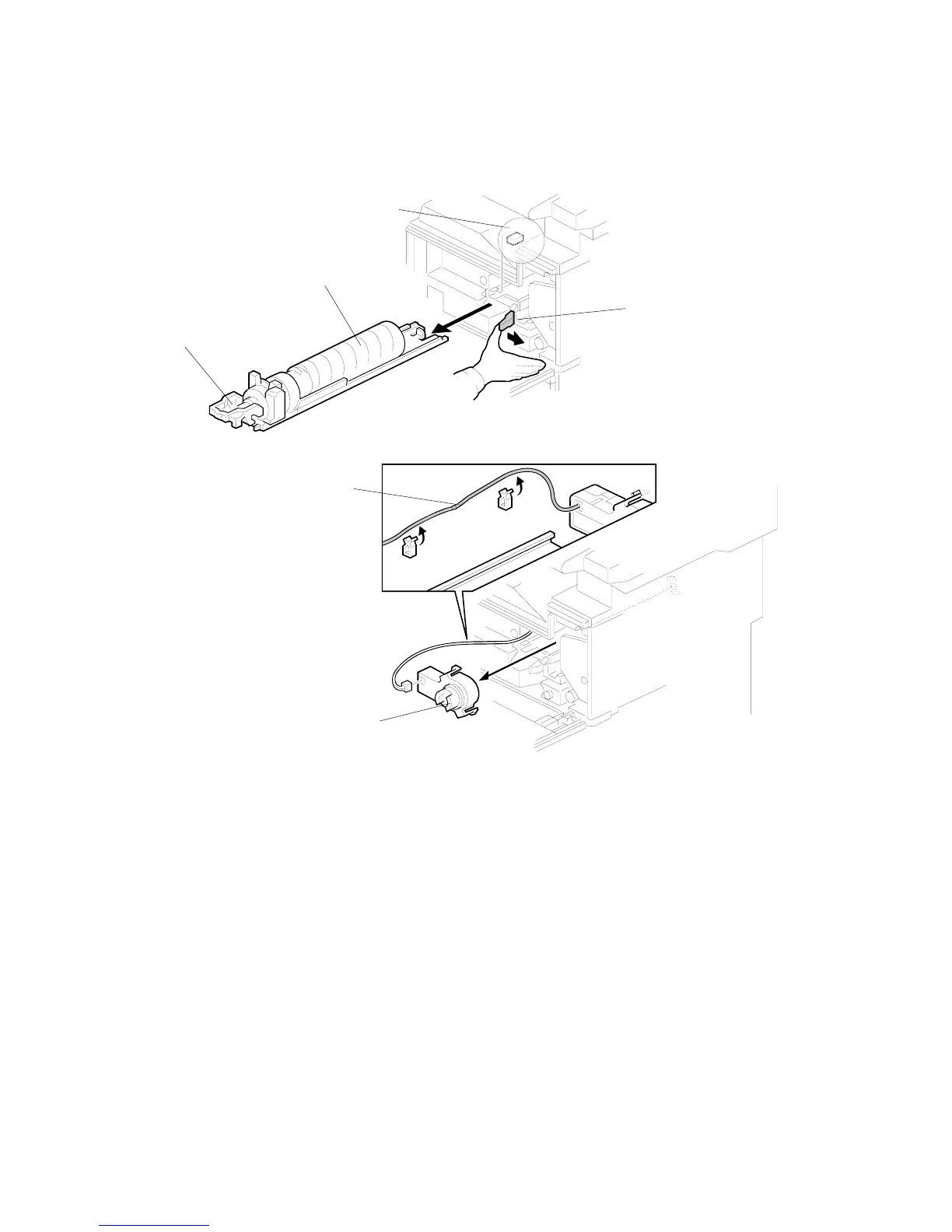

3.18.4 TONER SUPPLY MOTOR
1. Open the front door
2. Raise holder handle [A]
3. Push the holder lever [B] to the right
4. Stopper [C]
5. Toner bottle holder and bottle [D]
6. Motor harness [E] (clamps x 2)
7. Toner supply motor [F] (hooks x2, " x1)
NOTE: Press both sides of the motor to release it.
B195R810.WMF
B195R813.WMF
[B]
[C]
[E]
[F]
[A]
[D]
