FUSING UNIT
SM 3-59 B291/B295/B296/B297
Replacement
Adjustment
3.15 FUSING UNIT
!
CAUTION
Allow time for the unit to cool before doing the following procedure.

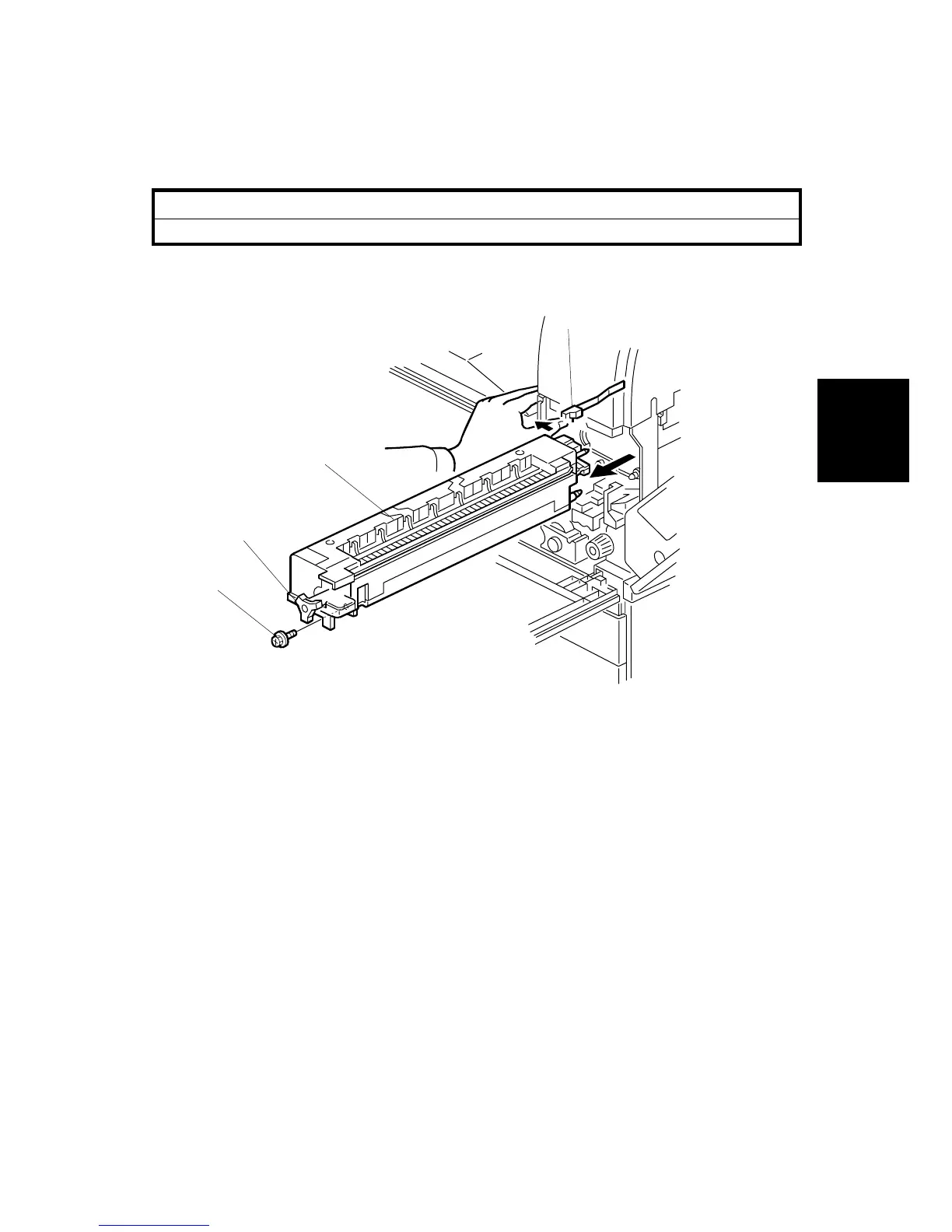

3.15.1 FUSING UNIT REMOVAL
1. Open the front door, duplex unit, and right door.
2. Set screw [A] (! x 1)
3. Fusing unit release lever [B]
4. Slide out the fusing unit [C]
NOTE: The larger knob [D] is provided to make turning the hot roller easier to free
jams.
B195R989A.WMF
[A]
[B]
[C]
[D]
To Next Page
