1.3.2 IEEE 802.11B INTERFACE KIT (G813)
Accessories
Check the accessories and their quantities against the following list:
Description Q'ty
1. IEEE 802.11b Board ..............................................................1
2. PCI Card ................................................................................1
3. Cap ........................................................................................1
CAUTION
TURN OFF THE MAIN POWER SWITCH AND DISCONNECT THE POWER SUPPLY CORD.
NOTE: You can only install one of these network interfaces: IEEE 802.11b
(Wireless LAN), IEEE1284 (Parallel/Centronics), or Bluetooth.
1. Remove the cover [A] of board Slot 1 or 2 ( x1)
2. Attach the interface board [B] to the controller board ( x1 knob screw).
NOTE: Use a screwdriver to tighten the knob-screws. Do not tighten manually,
because this can disconnect the board.
3. With the printed side facing the front of the machine, insert the interface card
[C] board.
4. Attach the antenna cap [D].

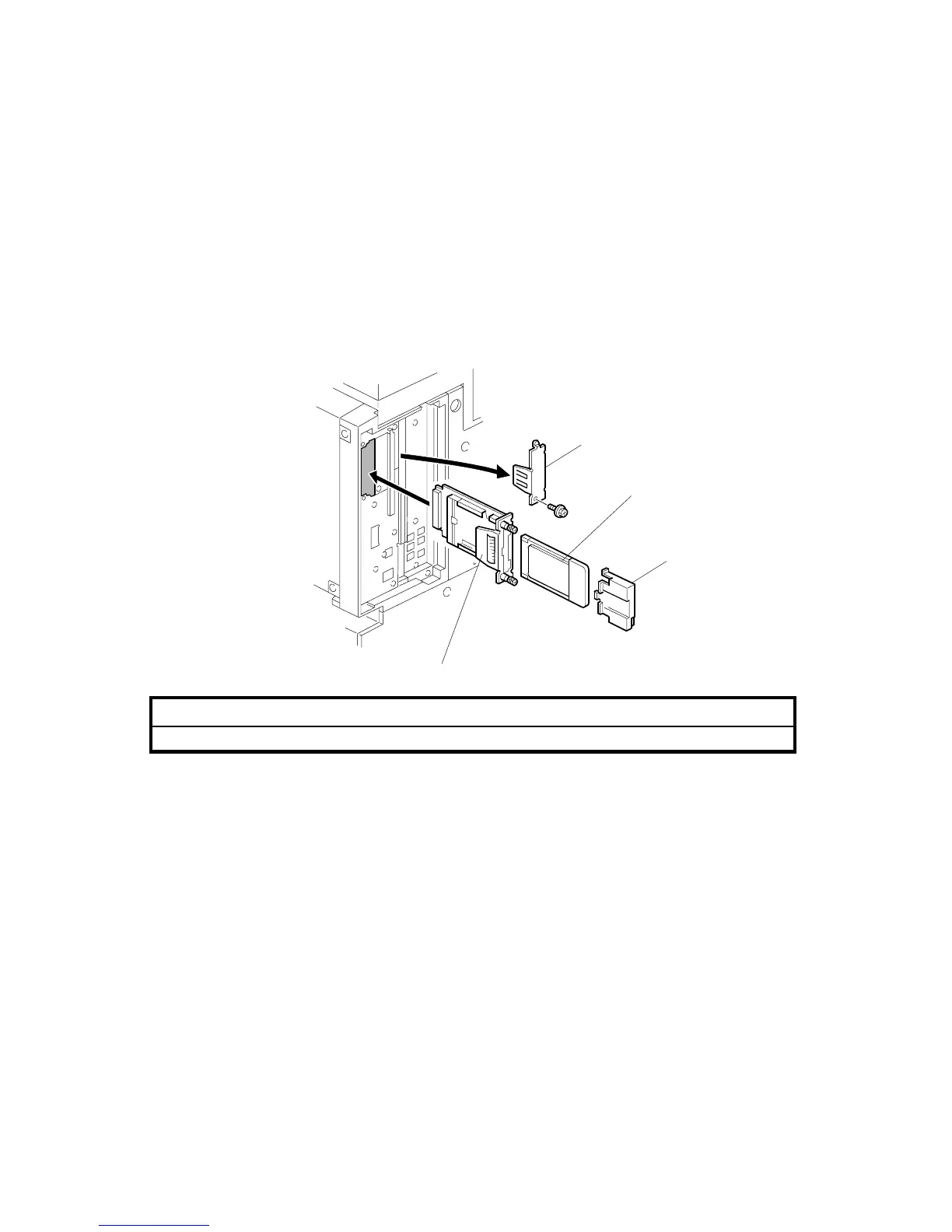

B783I906.WMF
[A]
[B]
[C]
[D]
