3.14.4 UPPER PAPER FEED UNIT FOR TRAY 1
1. Upper paper tray
2. Right lower cover. (!3.14.2)
3. Right upper cover (! 3.5)
4. Upper paper feed clutch [A] (!3.14.3 )
5. 3 relay gears [B]
6. Upper paper feed unit [C] (! x2, " x1)

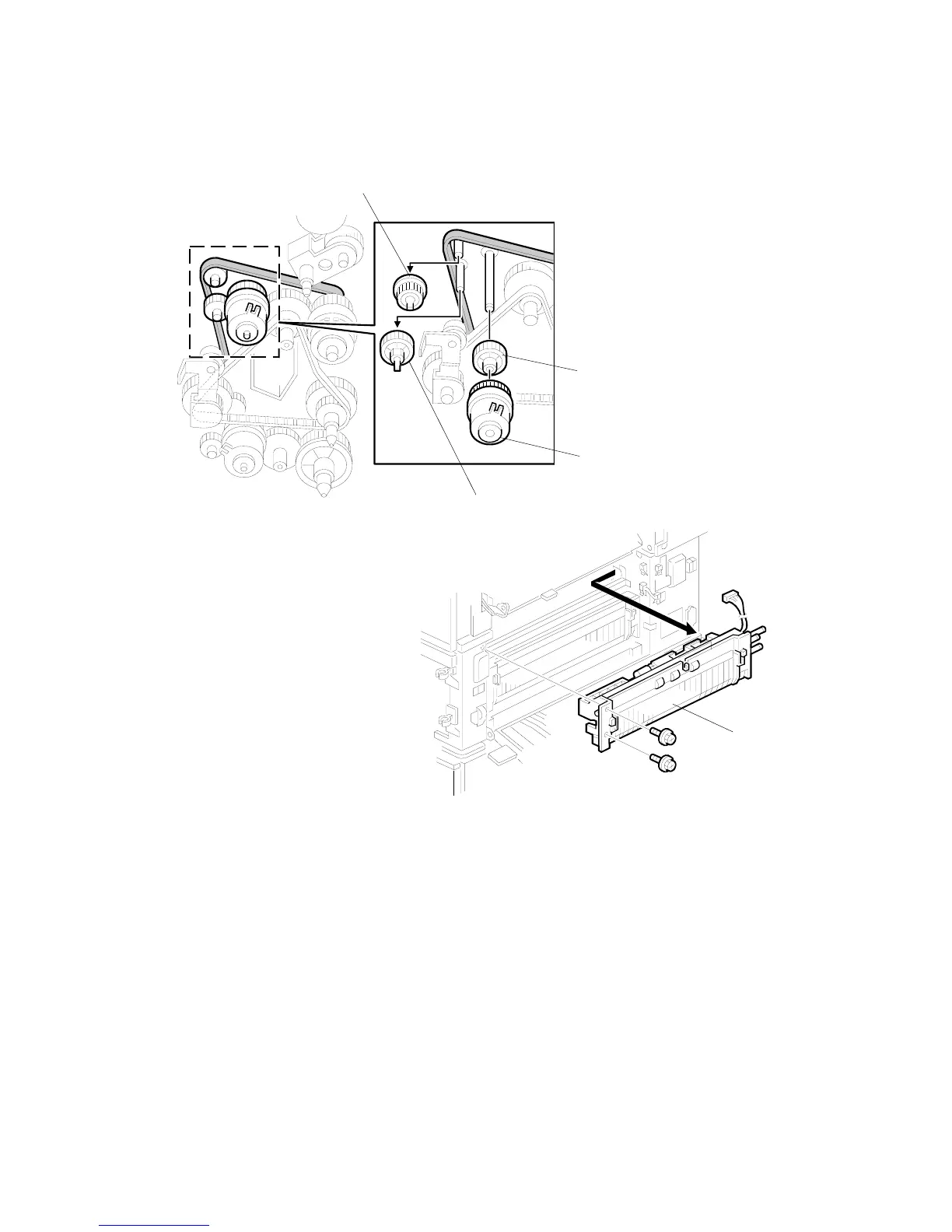

B195R959.WMF
B195R960.WMF
[A]
[B]
[B]
[B]
[C]
