Ricoh B291 - Polygon Mirror Motor

LASER UNIT
SM 3-25 B291/B295/B296/B297
Replacement
Adjustment
3.10.3 POLYGON MIRROR MOTOR

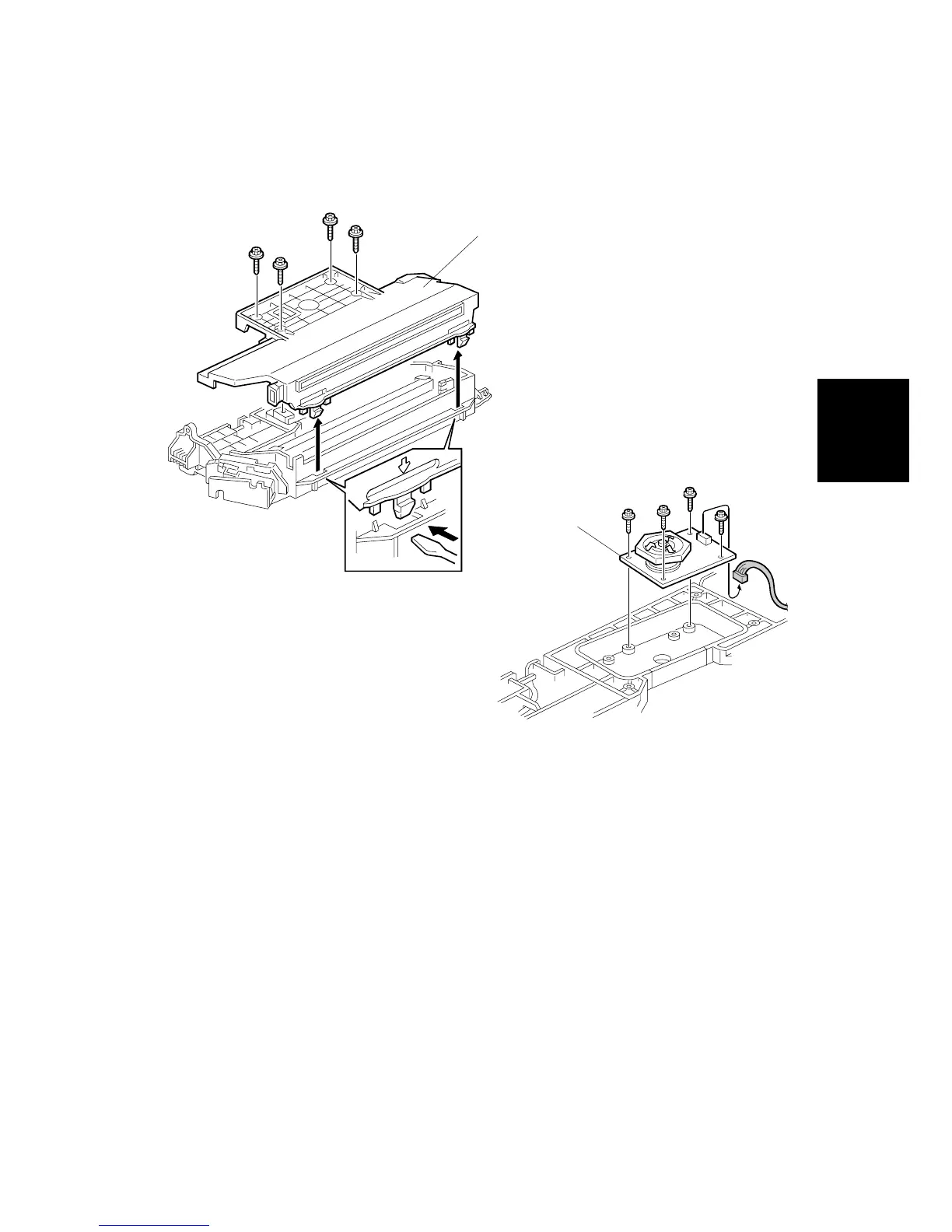

1. Laser unit (! 3.10.2)
2. Laser unit cover [A] (! x4, 2 hooks)
3. Polygon mirror motor [B] (! x4, " x1)
4. After replacing the motor, do the image adjustment. (!3.21)
B195R923.WMF
B195R928.WMF
[B]
[A]
