DEVELOPMENT
B291/B295/B296/B297 6-64 SM

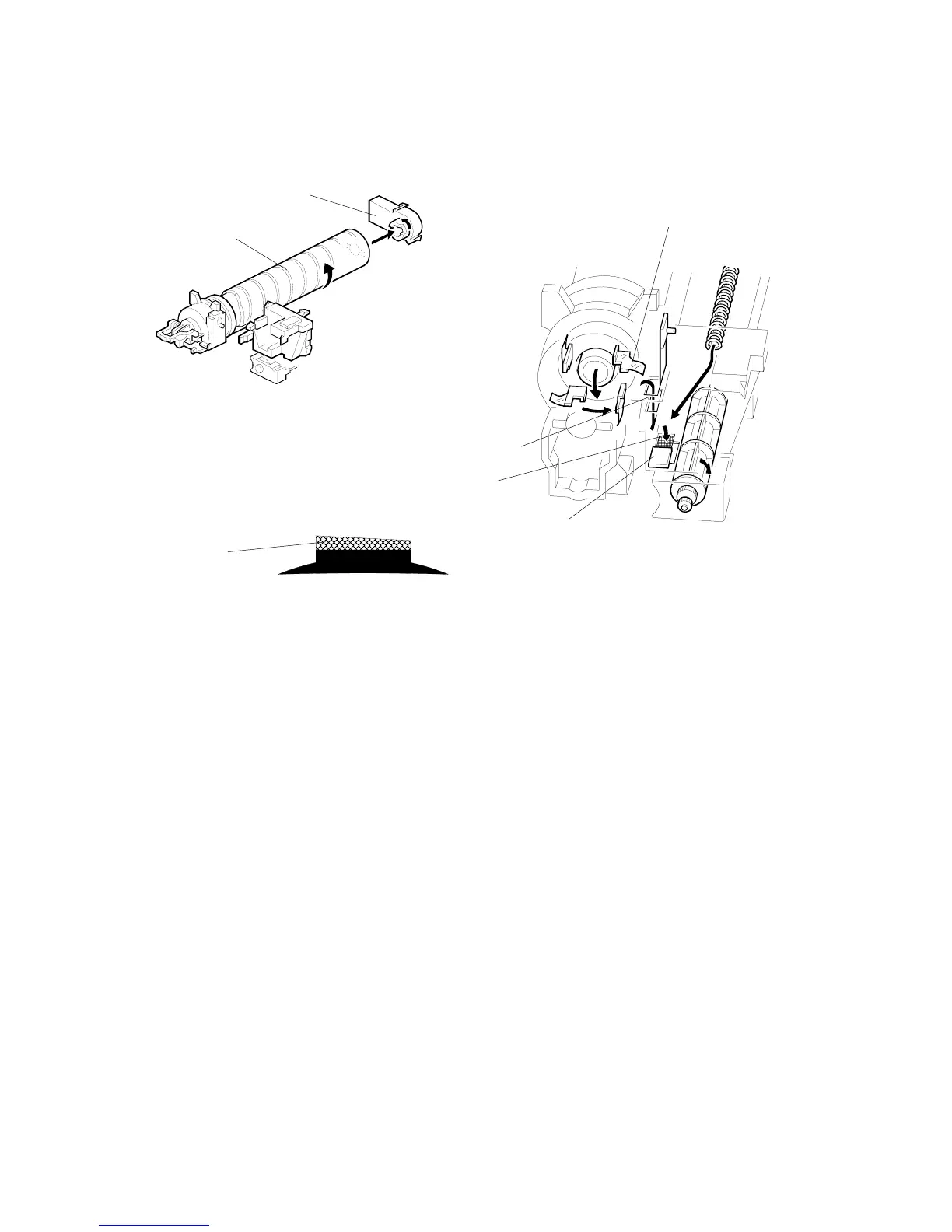

Toner supply mechanism
The toner supply motor [A] rotates the toner bottle [B] and the mylar blades [C].
Toner falls into the toner bottle holder, and the toner supply mylar blades [C]
transfer the toner to slit [D]. Installing the PCU opens the shutter [E].
The toner falls into the development unit through the port [F].
The left side of the entrance seal [G] is higher than the right. This improves the
efficiency of seal on the left side, especially when the PCU is removed.
B195D943.WMF
B195D944.WMF
B195D924.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
