LASER UNIT
B291/B295/B296/B297 3-24 SM

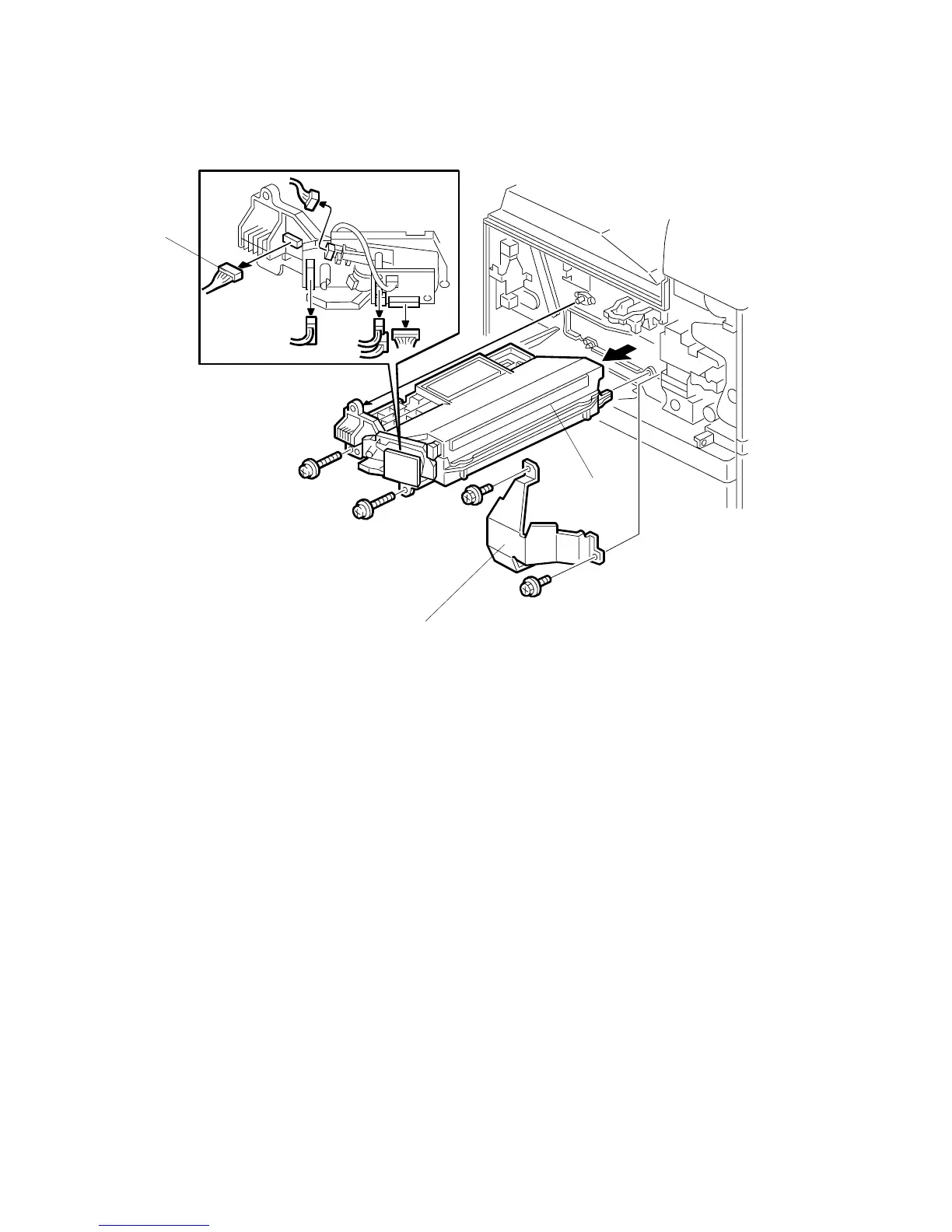

8. Shield plate [A] (! x 2)
9. While holding the LD board securely, disconnect the laser unit connector [B]
(" x 6, Flat film cable x1)
10. Hold the laser unit [C] by its casing, slide it out of the machine (! x 2)
B195R900.WMF
[A]
[B]
[C]
