LIFT MOTORS
B545 6 SM

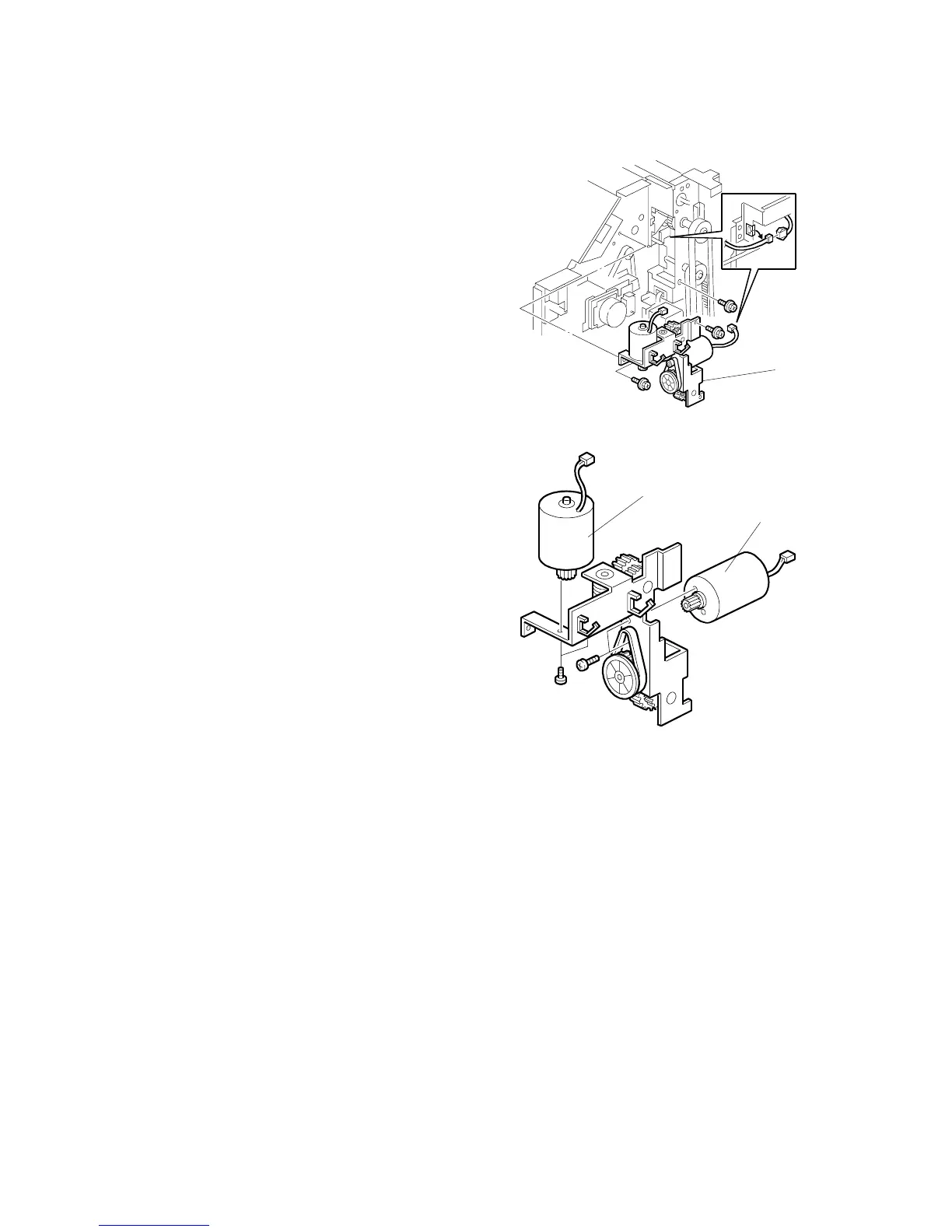

4. Motor bracket [C] ( x3, x 2)
5. Tray 1 lift motor [D] ( x2, drive belt)
6. Tray 2 lift motor [E] ( x2, drive belt)
B352R204.WMF
B352R205.WMF
[C]
[D]
[E]
