ARDF INSTALLATION (B714)
SM B291/B295/B296/B297
1-45
Installation
2. Attach and tighten stud screws $, %.

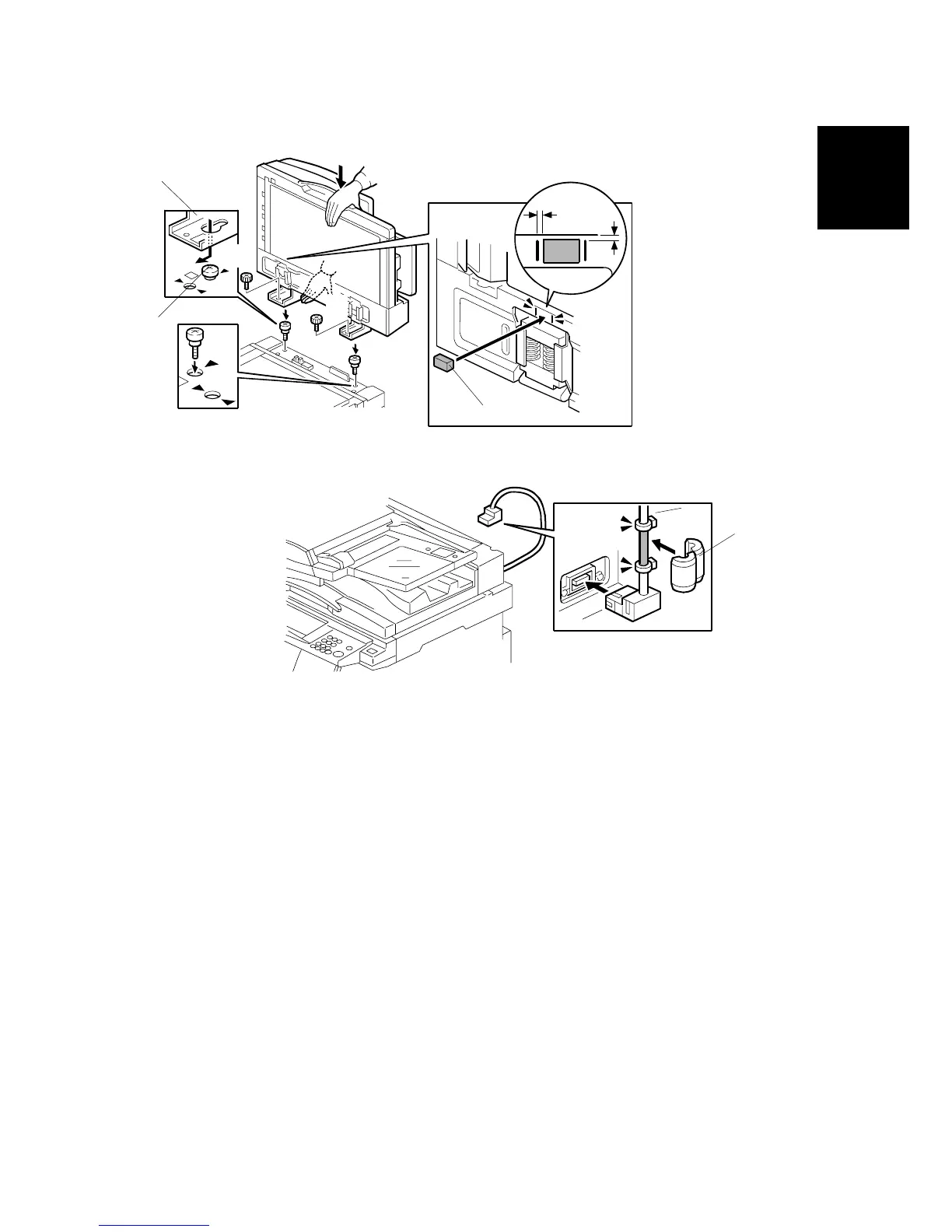

3. Mount the ARDF by aligning the screw keyholes [A] of the ARDF support plate
over the stud screws [B], then slide the ARDF toward the front of the machine.
NOTE: To avoid damaging the ARDF, hold it as shown.
4. Secure the ARDF with the screws &, ' .
5. Attach the gasket [C].
NOTE: The gasket is provided as an accessory with the mainframe.
6. Attach the ferrite core [D] to the I/F cable [E].
NOTE: The ferrite core is provided as an accessory with the mainframe.
7. Connect the I/F cable the main machine.
B541I900A.WMF
B541I900B.WMF
$
%
&
'
[A]
[B]
[C]
[D]
[E]
0 to 1 mm
0 to 1.5 mm
To Next Page
