ARDF INSTALLATION (B714)
SM B291/B295/B296/B297
1-47
Installation

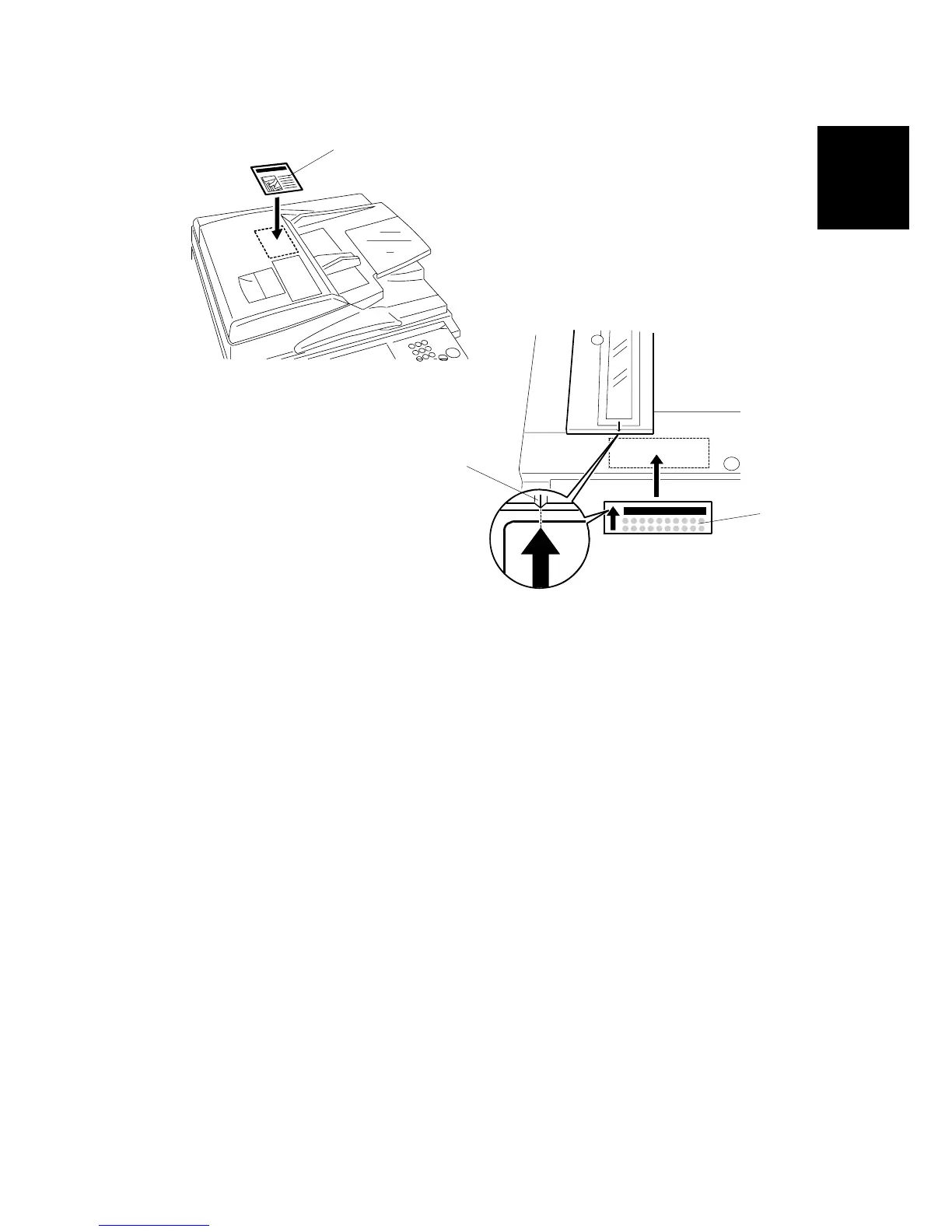

11. Attach the decal [A] to the top cover as shown, choosing the language most
suitable for the machine installed.
12. Attach the decal [B] to the cover so that the arrow on the decal lines up with the
groove [C] of the left scale as shown. As with step 11, choose the language
most suitable for the machine installed.
13. Turn on the main switch.
14. Check the ARDF operation and copy quality. Be sure to check and adjust the
registration for the ARDF with the SP modes
B541I906.WMF
B541I903.WMF
[A]
[B]
[C]
