Integrated Multiviewers:
Sirius 800 routers can also be equipped with integrated multiviewers. These can monitor any
router SDI input or monitor SDI outputs; they provide multiviewer video wall display outputs at
the rear of the Sirius frame, on HD-BNC or Fiber connectors via SFPs.
The Sirius 800 integrated multiviewer modules and associated rear panels include:
• MV-800:
MV-800 Integrated Multiviewer; MV-800-RP MV800 Rear Panel.
Monitors any router input. See Figure 152.
• MV-850:
MV-850 Integrated Multiviewer; MV-850-RP MV-850 Rear Panel.
Dual output module, provides standard-video outputs with an integrated multiviewer.
Fits Sirius 840 and 850 router output module slots.
Monitors selected router outputs. See Figure 153.
See the respective, separate Integrated Multiviewer User Manuals for more information.

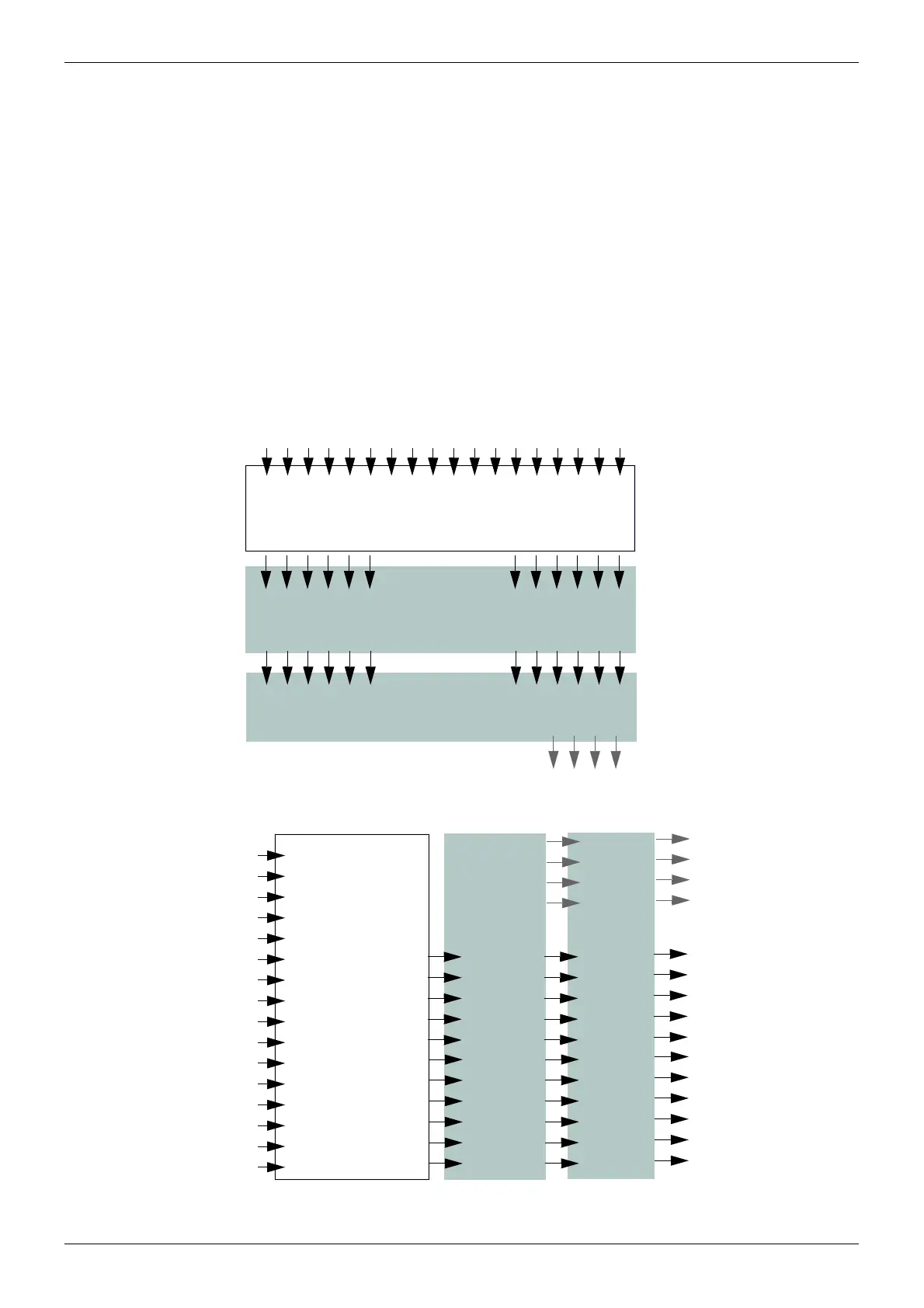

Figure 152 MV-800 Integrated Multiviewer - Multiviewer-Monitoring of Inputs
Figure 153 Sirius 840/850 MV-850 Integrated - Multiviewer-Monitoring of Outputs
Inputs from Input Modules
5902: Multiviewer Crosspoint Module
MV-800:
Integrated Multiviewer Module(s)
MV-800-RP:
MV800 Rear Panel(s)
Video Wall Display Output
HD BNC or Fiber connectors
Inputs from Input Modules
MV-850:
Integrated Multiviewer
Multiviewer and Dual Output Module(s)
MV-850-RP:
MV-850 Rear Panel(s)
Video Wall
HD BNC or Fiber
connectors
Router SDI Outputs
HD BNC connectors
Main Router Crosspoint
