Changing the Flap Position of the Media Guide
192

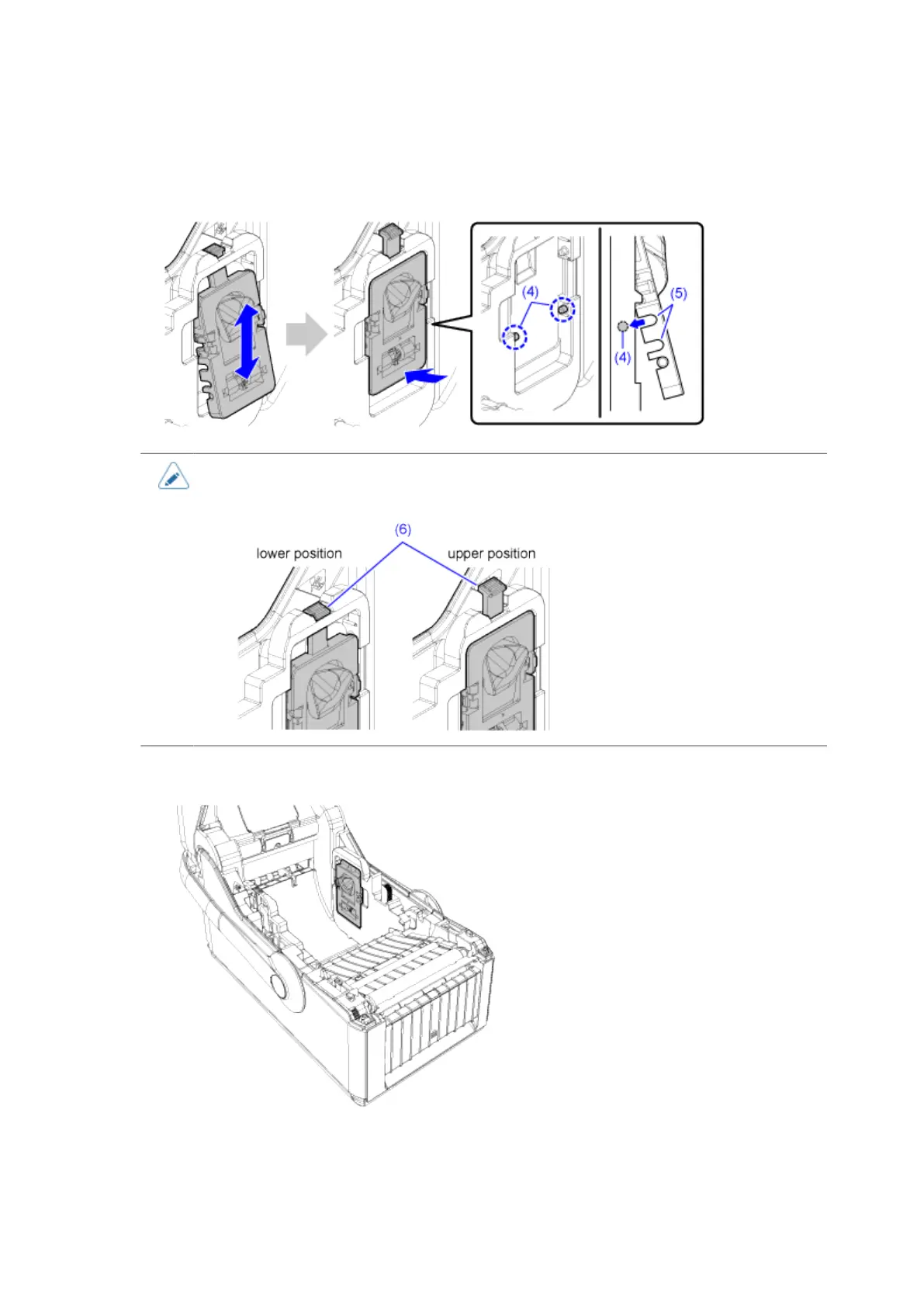

4. Slide the flap upward when using the φ40 mm (φ1.5") core, or downward when
using the φ26 mm (φ1") core. Then insert the groove of the flap (5) into the
protrusion of the media guide (4).
• When the left flap is set to the upper position, an indicator (6) pops out. Do not push
the indicator in.
5. Set the other side of the flap to the same position.
