Loading the Media Roll (Printing in Linerless Tearoff Mode)
206

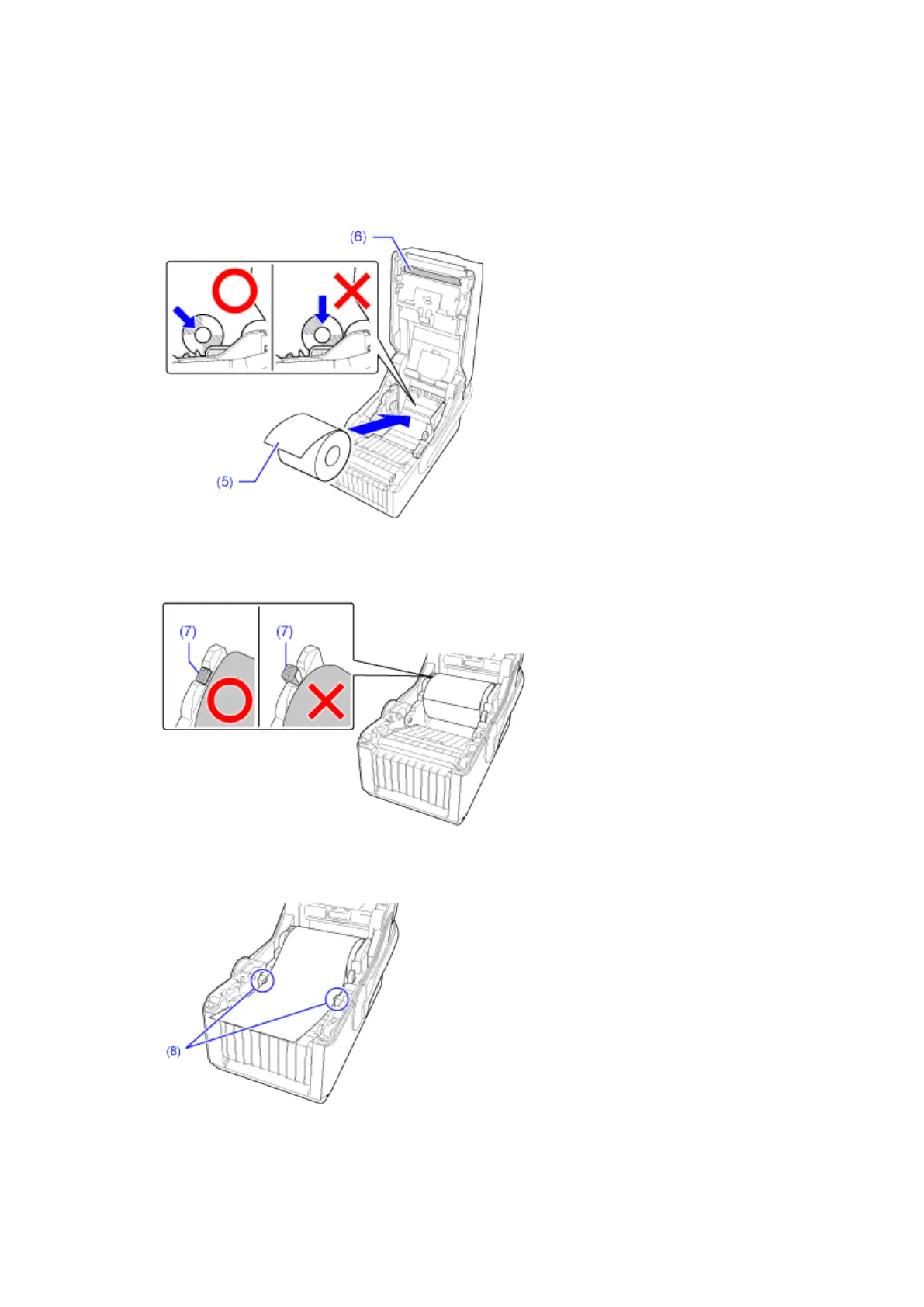

3. Load the media roll.
Set the media roll with the print side (5) facing the print head (6) and push it diagonally from the
front.
If the media roll is loaded correctly, the indicator part (7) of the media guide that moved to side
returns to its original position.
4. Pull out the media and pass it below the tabs (8).
5. Close the top cover.
Push both ends of the top cover, and close it firmly until it clicks.
