368

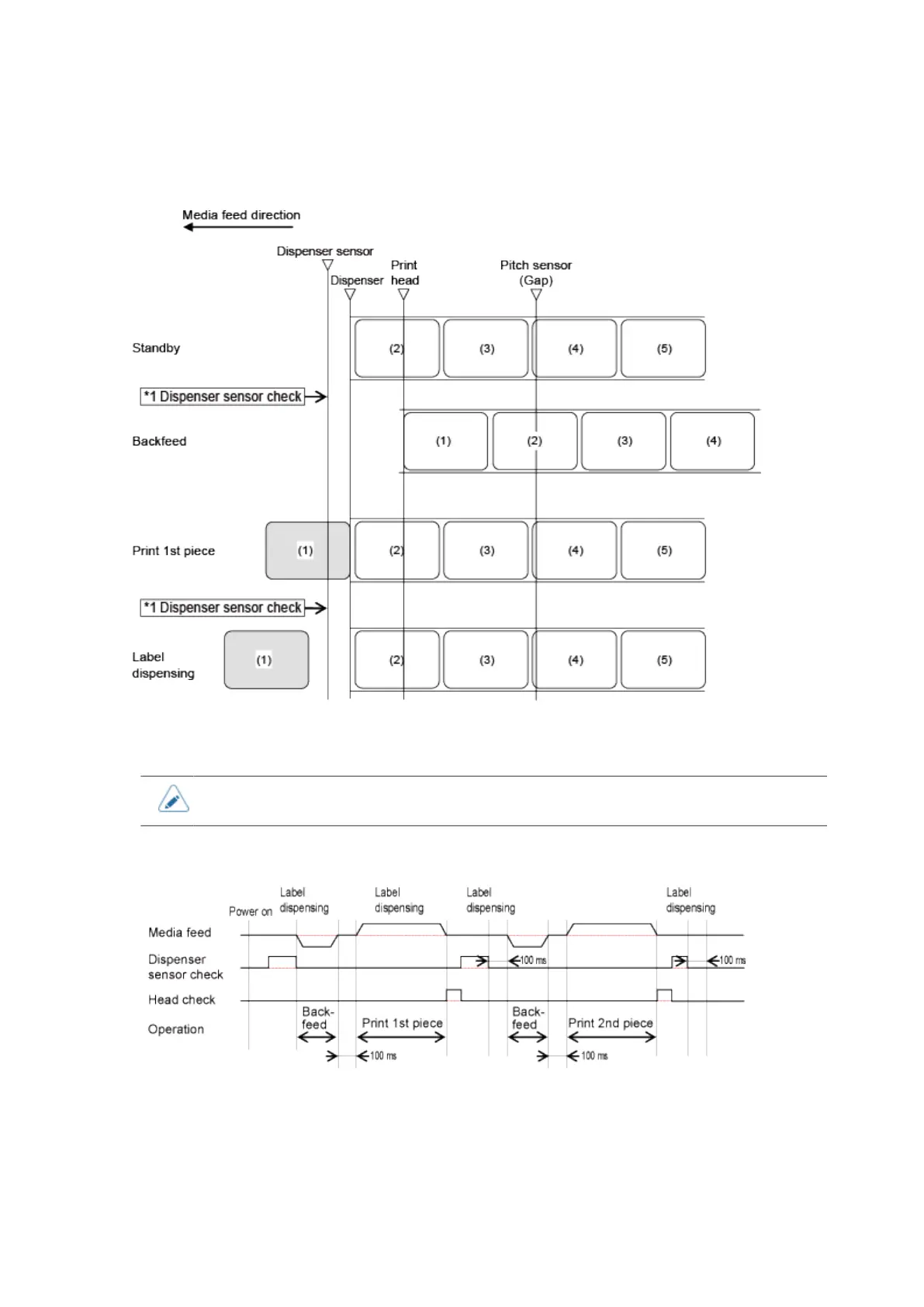

Operation 18: Dispenser Mode and Backfeed Before Printing (Head Check Enabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the printer does not perform the next
operation until the label is dispensed.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
