SATO FX3-LX - Page 433

433

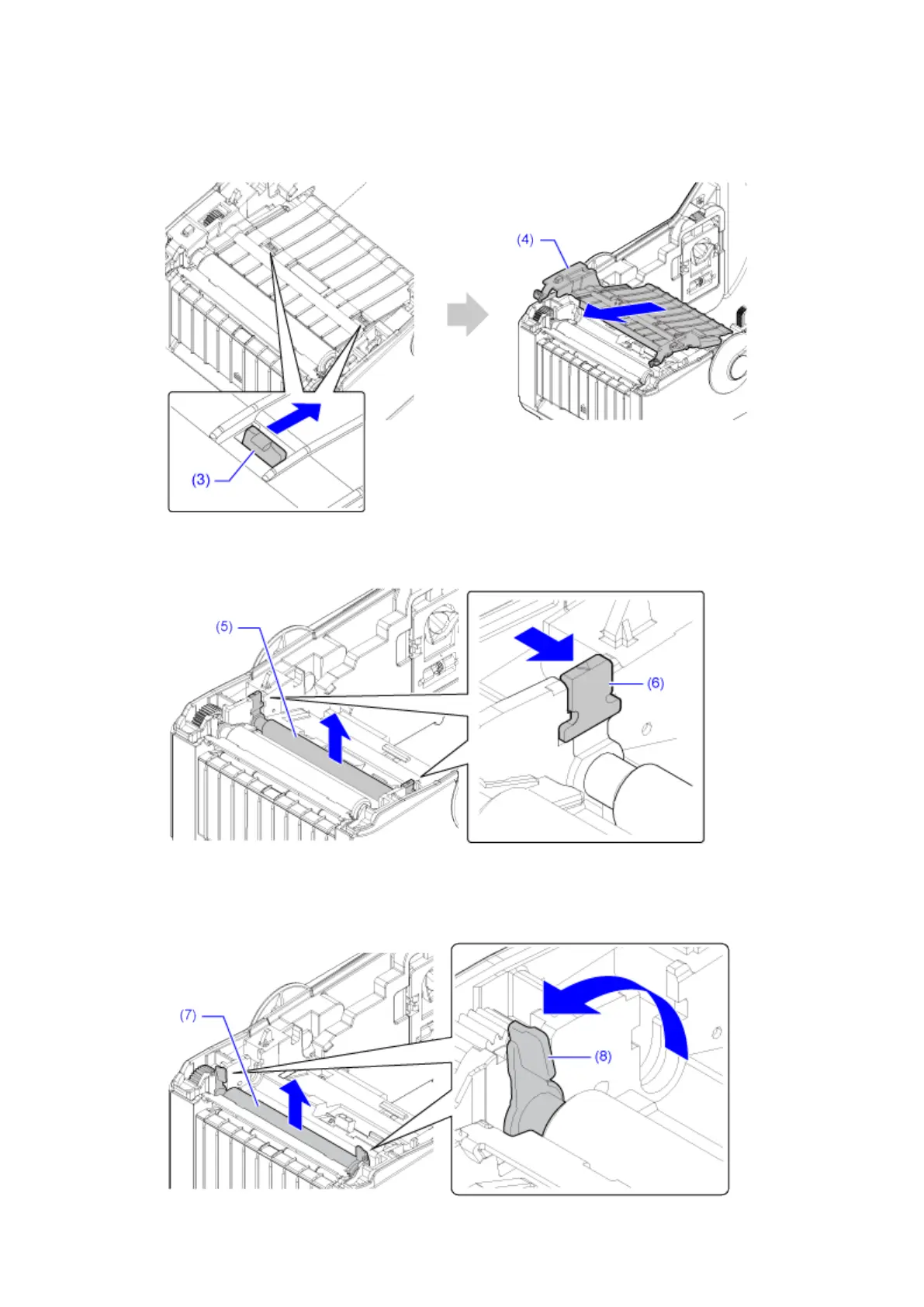

4. Push the two tabs (3) toward the back to remove the inner cover (4).
5. Tilt the two tabs (6) of the feed roller (5) inside to remove the feed roller.
6. Turn the two levers (8) of the linerless platen roller (7) to the front to remove the
linerless platen roller.
