SATO FX3-LX User Manual

Installing the Optional Wall Mount Kit
96
Unmounting the Printer from the Mount Bracket
When opening the top cover to replace media, etc., unmount the printer from the mount bracket.
• Do not connect or disconnect the power cord while your hands are wet. Doing so could
cause an electric shock.
• When unmounting the printer from the mount kit, hold the printer with both hands.
Otherwise, you may be injured by the printer fallen.
• Carefully handle the wall mount kit so that you may be not injured by its sharp edges.
1. Power off the printer.
• The print data will be cleared if the printer is powered off. Please reissue the print data
again.
2. Remove the AC adapter cable from the printer.

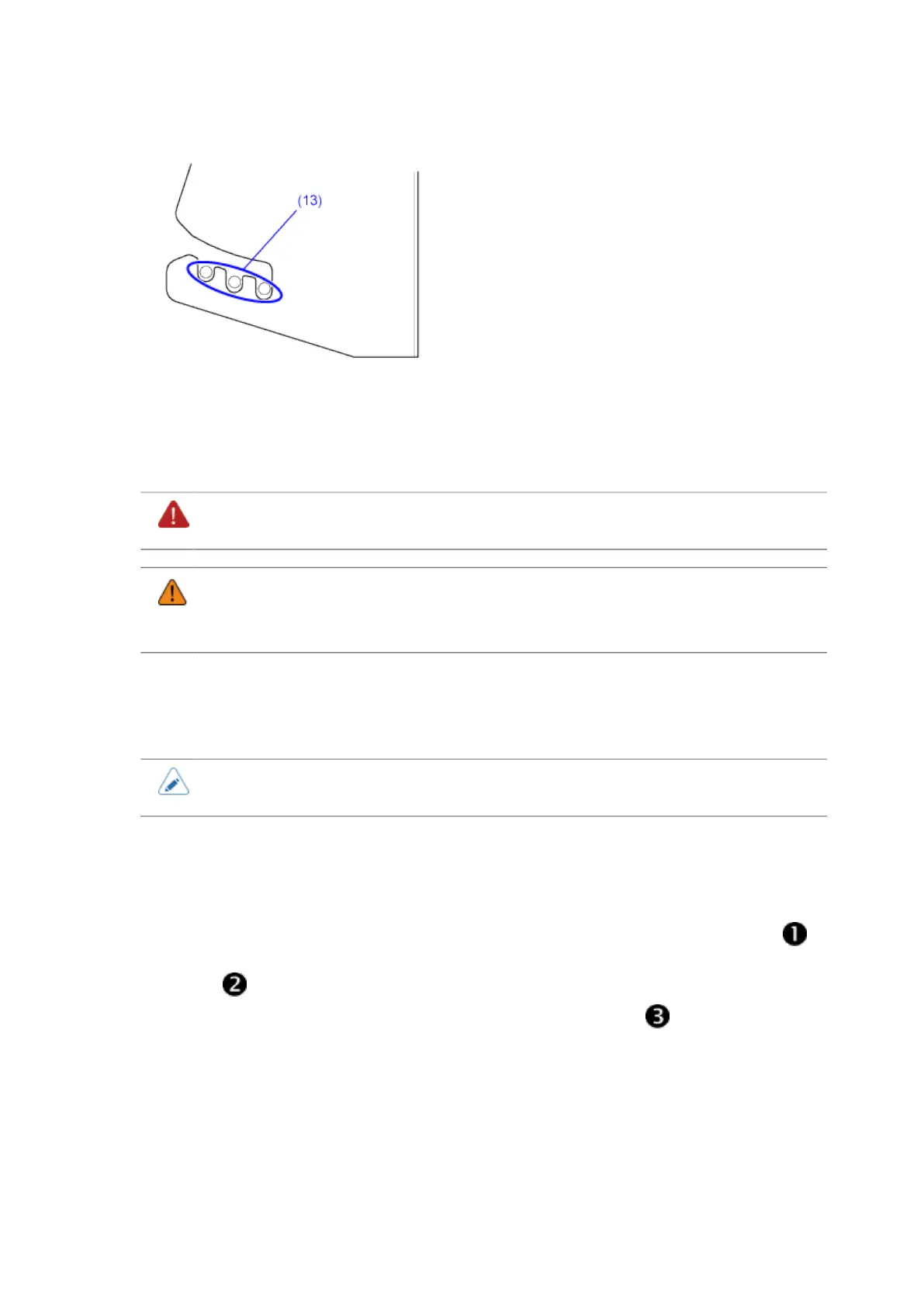

3. Unmount the printer from the mount bracket.
a.
Lift up the printer, and remove protrusions B from the groove of the angle adjustment part ( ).
b. By using protrusions A as a pivot, pull protrusions B forward and unmount them from the mount
bracket ( ).
c.
Lift up the printer, and unmount protrusions A from the mount bracket ( ).

SATO FX3-LX Specifications

General

Cutter	Yes
Certification	EN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID module	No
Maximum resolution	- DPI
Maximum print height	500 mm
Maximum printing width	80 mm
Battery voltage	14.4 V
AC input voltage	100 - 240 V
Battery capacity	1950 mAh
AC input frequency	50 / 60 Hz
Suitable for use in country/location	Europe
Sustainability certificates	ENERGY STAR
Display	LCD
Control type	Touch
Product color	White
Display diagonal	7 \
Display resolution	480 x 800 pixels
International Protection (IP) code	IPX2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
USB 2.0 ports quantity	4
Connectivity technology	Wired & Wireless
Media thickness	0.14 - 0.19 mm
Maximum roll diameter	105 mm
Storage temperature (T-T)	-5 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 75 %
Cables included	AC
Quantity per pack	1 pc(s)
Languages support	Multi

Weight and Dimensions

Depth	225 mm
Width	132 mm
Height	180 mm
Weight	3000 g
