STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0
1. Identifying STAT IM 2000 Units
Software Versions and Corresponding Calibration Procedures
Model Approx.
Year of
Manufacture
Software
Revision
Steam
generator
Type
PCB
Revision
Pump Compressor Pressure
transducer
Validation
thermocouple
Calibration
procedure
1000 1992 - 1995 N/A Aluminium
Internal
3.x/4.x
3
N/A N/A N/A 1
2000 1992 - 1995 N/A Aluminium
Internal
3.x/4.x
33
N/A N/A 1
2000 1995 - 2005 S2O2R1xx
S2O2R2xx
Aluminium
Internal
2.x/5.x
33
N/A N/A 2
2000 2005 - 2007 S2O2R5xx Aluminium
External
6.x
33
N/A
3
3
2000
2007 Æ
S2O2R6xx Aluminium
External
7.x
33
N/A
3
4
2000
G4
2010 Æ
S202R7xx Aluminium
External
7.x
33 N/A 3
8
2000S 1995 - 2004 S2S2R1xx
S2S2R2xx
Aluminium
Internal
2.x/5.x
33 3
(60 p.s.i.)
N/A 5
2000S 2004 - 2005 S2S2R4xx Stainless
Steel
6.x
33 3
(68p.s.i.)
N/A 6
2000S 2005 - 2007 S2S2R5xx Aluminium
External
6.x
33 3
(68p.s.i.)
N/A 6
2000S
2007 Æ
S2S2R6xx Aluminium
External
7.x
33 3
(68p.s.i.)
N/A 7
2000S
G4
2010 Æ
S2S2R7xx Aluminium
External
7.x
33 3
(68p.s.i.)
N/A 9
Identifying Controller Board Types
There are four different types of Controller Boards that may be encountered in STAT IM 2000/2000S/2000 G4
type units (See ‘PCB revision’ above). They can be identified as below (Figure 3):

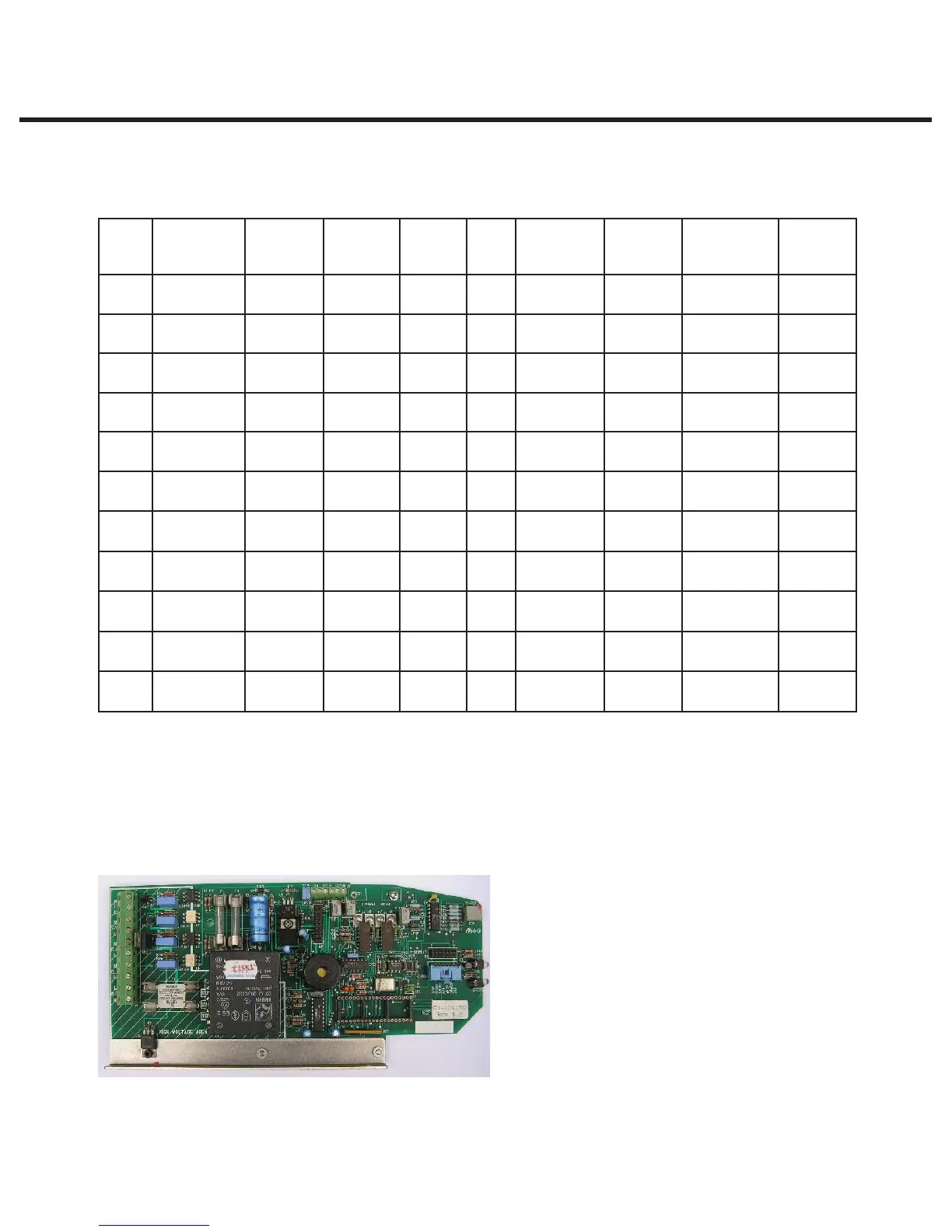

Figure 3
Revision 3.x/4.x type board (1992 – 1995):
Typical features:
t Revision number bottom right hand side.
t Single, rectangular microprocessor.
STATIM 2000/2000S/2000 G4 Service Guide
