SciCan Statim 2000 - Removing the Aluminum Steam Generator

Page 223
STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0
11. Steam Generator, Check Valve, Thermal Fuse and Pressure Relief Valve
STATIM 2000/2000S/2000 G4 Service Guide
Removing the Aluminium Steam Generator
(for both 1st generation and Alex versions)
CAUTION: The steam generator may be hot if the unit has been operating. Guard against burns.

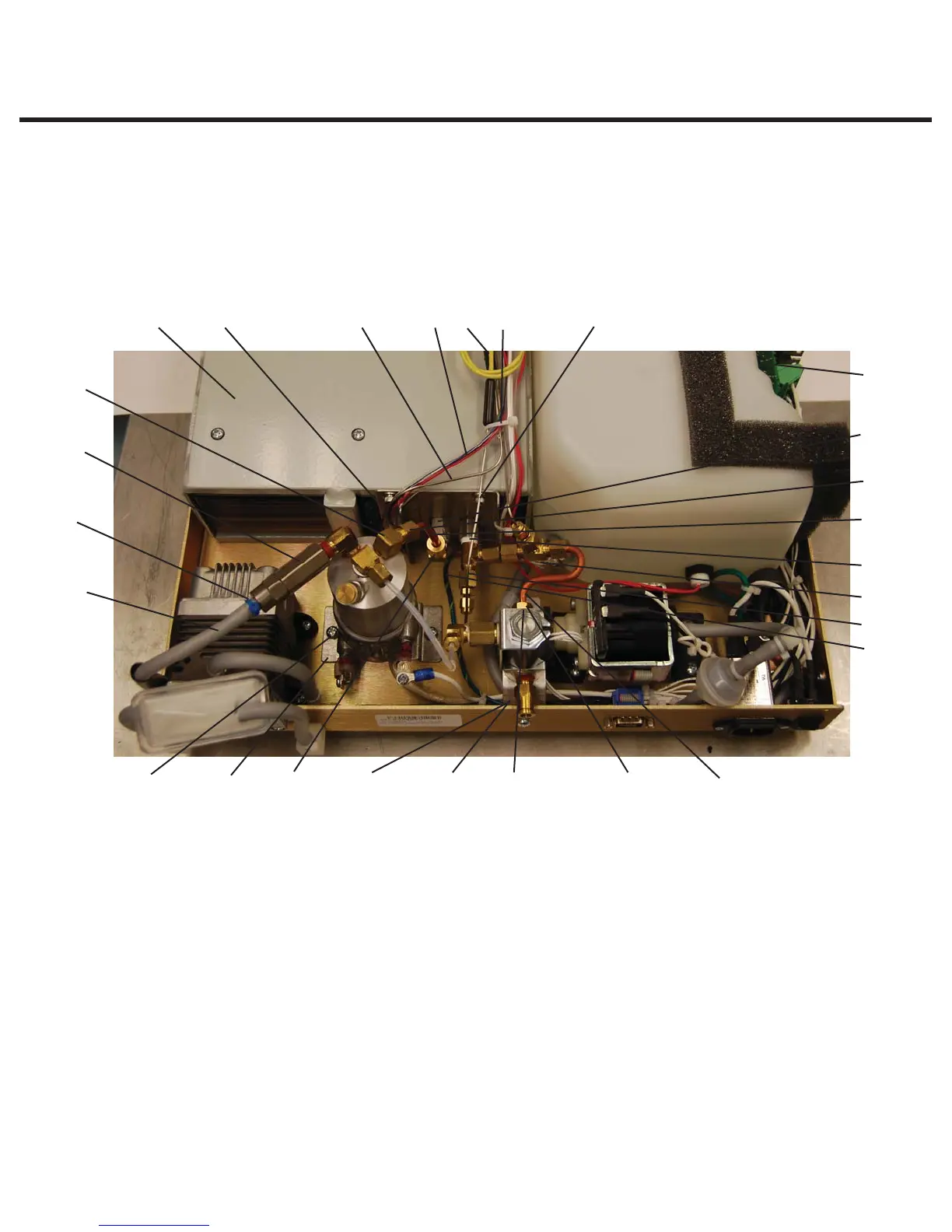

To remove the steam generator, proceed as follows (see Figure 3):
26
14
11
9
10
15
6
20 (obscured) 17 (obscured) 19 (obscured)
23
18
24
16
4
21
2
27
8
7
13
12
28
22
1
25
5
1. Chamber thermocouple leads
2. Controller board
3. Flag terminal (See Figure 3)
4. Microswitch leads
5. Cable tie
6. Steam generator thermocouple
7. Chamber thermocouple
8. Reservoir sensor leads
9. High temperature rated cable tie
10. Compressor tube
11. Check valve
12. Steam generator outlet tube
compression nut
13. Steam generator outlet tube
14. Steam generator outlet fitting
15. Screws for item 16
16. Steam generator / bracket
assembly
17. Exhaust tube compression
nut (obscured)
18. Solenoid valve exhaust tube
19. Solenoid valve inlet fitting
(obscured)
20. Screws for item 21 (one
screw obscured)
21. Solenoid valve / bracket
assembly
22. Probe bracket assembly
23. Cap screws with flat
washers
24. Probe bracket gasket (not
shown)
25. Compression nut for probe
inlet fitting
26. Armature
27. Probe inlet fitting
28. Armature ground wire
Figure 3
