Page 246
STAT
IM
2000/2000S Service Guide
96-108639 Rev 3.0
12. Printer and Data Logger
Installing Thermal Paper into the STATprinter
NOTE: Use only paper approved for use with the STATprinter. The use of any other paper may
damage the printer and will void the warranty. Thermal paper is available from SciCan (SciCan
order no. 01-101657S).
Do not operate the printer without paper. If you run out of thermal paper, or if you do not wish
to use the printer, turn it OFF.
Never pull the paper backwards through the printer. This will damage the printer mechanism.

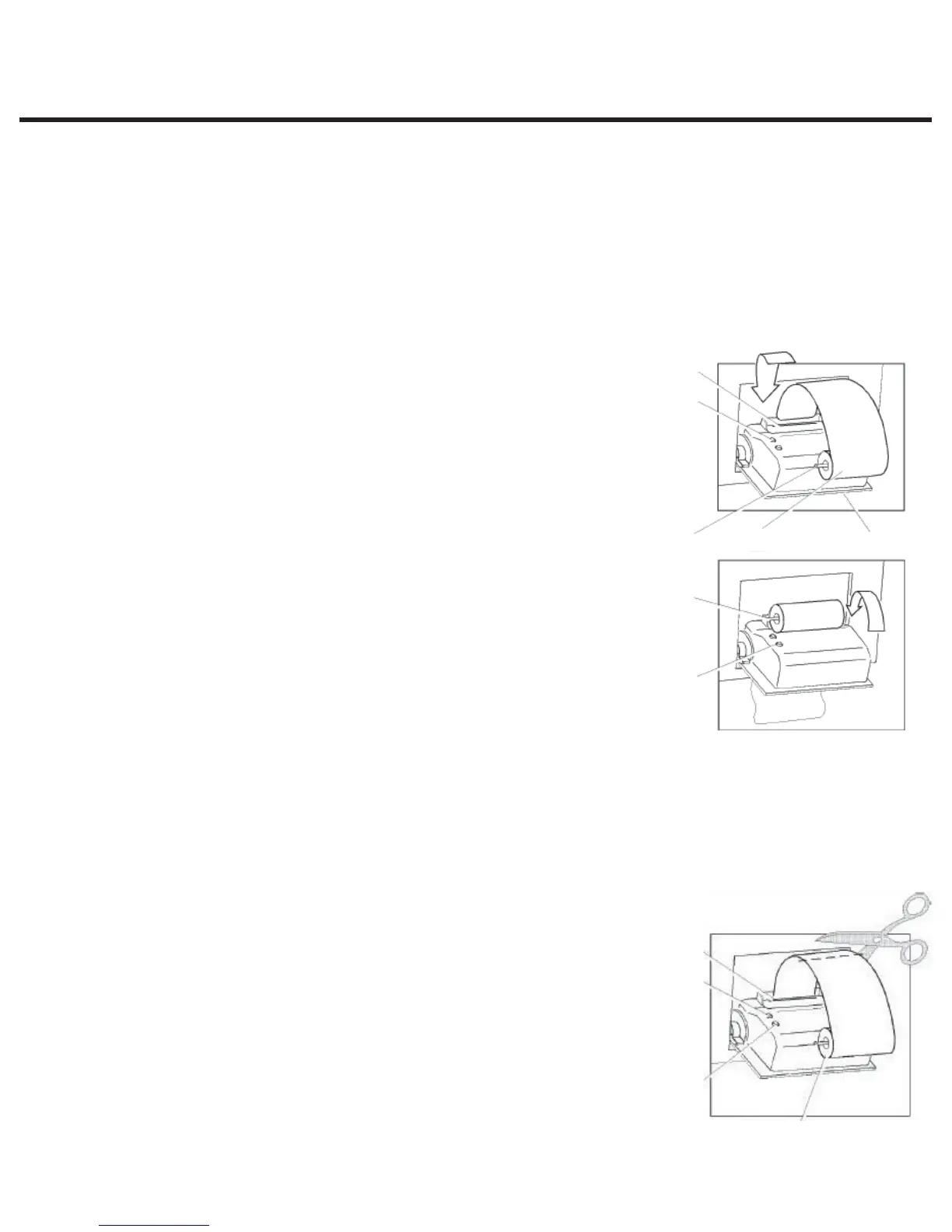

To install the paper into the printer, proceed as follows (see Figure 4.1):
1. Power the STATIM unit ON.
2. Open the printer door (1) by pushing on the top half of the door.
3. Power the printer ON.
4. Unroll a small amount of paper roll (4) and trim the corners using the
paper cutting template included with each box.
5. Move the paper roll arm(4) into the loading position. Place the paper
roll (3) on the arm so the paper strip feeds from the top of the roll
and then carefully insert it into the paper feed slot(5) until it stops. If
the paper does not feed from the top, the heat sensitive side of the
paper will not be in contact with the print head and the printer will
not print.
6. With one hand, continue to gently feed the paper strip into the paper
feed slot while at the same time pressing the paper advance button
with the other hand until the paper feeds by itself. Keep the paper
straight when feeding it into the printer or it may jam. Do not force
the paper into the slot! If the paper will not feed into the slot, pre-cut
the end of the roll again and reload the paper.
7. Continue to press the paper advance button (6) until the paper feeds
through the paper exit slot on the front of the printer. Then, move the paper roll (3) and arm
into the operating position and close the printer door (1). The printer is now ready to operate.
When you see a red line on one side of the paper, it is time to replace the roll.
If a paper jam occurs, and the paper cannot be removed by pressing the paper advance button
(6) do not pull the paper backwards through the printer.
Never put a utensil or tool into the paper exit slot.
For full instructions on how to remove paper jams, see ‘Removing
Paper Jams’ below.
To replace the paper roll (3), proceed as follows (see Figure 4.2):
1. With scissors, cut the paper between the roll (3) and the paper feed
slot (5)
2. Remove the roll from the arm and discard the unused portion.
3. Press the paper advance button (6) to feed the paper that remains in
the printer out of the slot at the front of the printer.
4. Install the new thermal paper roll by following the instructions
described above.
Figure 4.1
Figure 4.2
134
4
6
6
2
5
2
5
STATIM 2000/2000S/2000 G4 Service Guide
