7. Electrical and Electronic Components
Mains Components
Power Cords
You will encounter two types of power cord on STAT
IM
units:
t Hard wired type, which are attached through the back of the chassis using a bulkhead
style strain relief and are wired directly to the power switch using ‘fast-on’/’spade’
terminals.
t Detachable type, which are modular and plug into a panel mounted A.C. inlet receptacle
or receptacle / line filter in the back of the chassis.

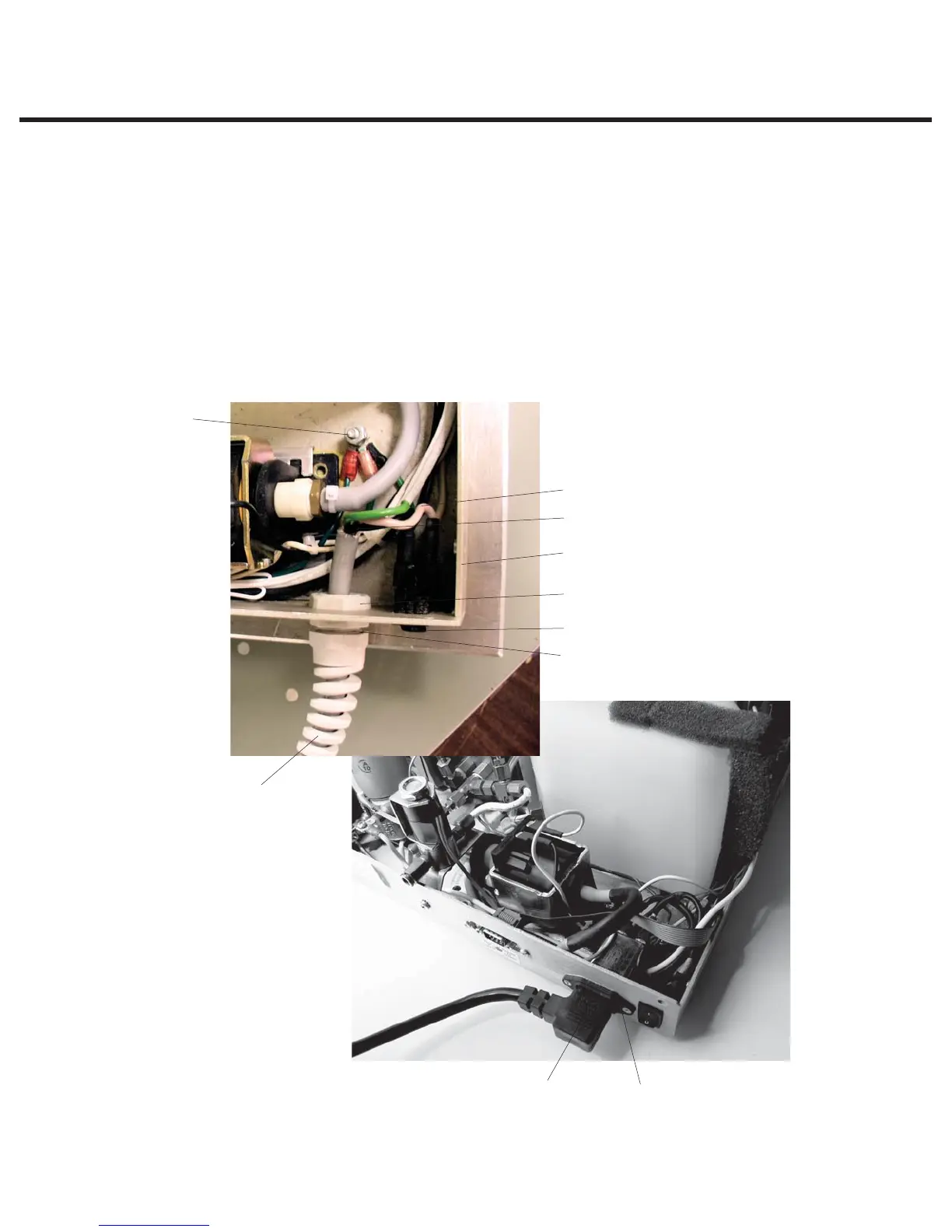

1. Directly wired line cord
2. Power switch
3. Strain relief
4. Chassis
5. Strain relief nut
6.
a. White wire
b. Black wire
7. Nut (hidden by cables)
8. Washers (hidden)
9. Ring terminal (hidden)
10. Ground post (hidden)
11. Detachable line cord
12. A.C. Inlet receptacle
11 12
6b
6a
5
4
3
2
1
7, 8, 9, 10
Figure 20
