8. Water Pumps, Reservoir, and Compressor
Water Pump Recovery Repair Procedure
Pump performance may be compromised because of foreign material caught inside the assembly,
blockage of an orifice or mechanical wear of internal parts. Before replacing a pump that is
performing poorly, attempt to recover the unit by cleaning the filter(s) and/or resizing the pump tube.
Performing Filter Maintenance
Early STAT
IM
2000 / 2000S units fitted with SciCan pumps have a coarse mesh filter in the inlet
fitting and a fine mesh filter in the outlet elbow fitting located internally in the pump.
In 2007, SciCan removed these two filters due to the implementation of the water reservoir filter in
2006 and subsequent introduction of the in-line filter in 2007.
The in-line filter was added between the water reservoir
and the water pump inlet to address the issue of
customers not using the reservoir filter. The purpose of
this in-line filter is to stop debris from entering the STAT
IM
plumbing system when the reservoir filter is not used.
The in-line filter kit is available as part # 01-106637S and
includes the filter and all necessary tubing. This filter
should be replaced every 2000 cycles or every two years.

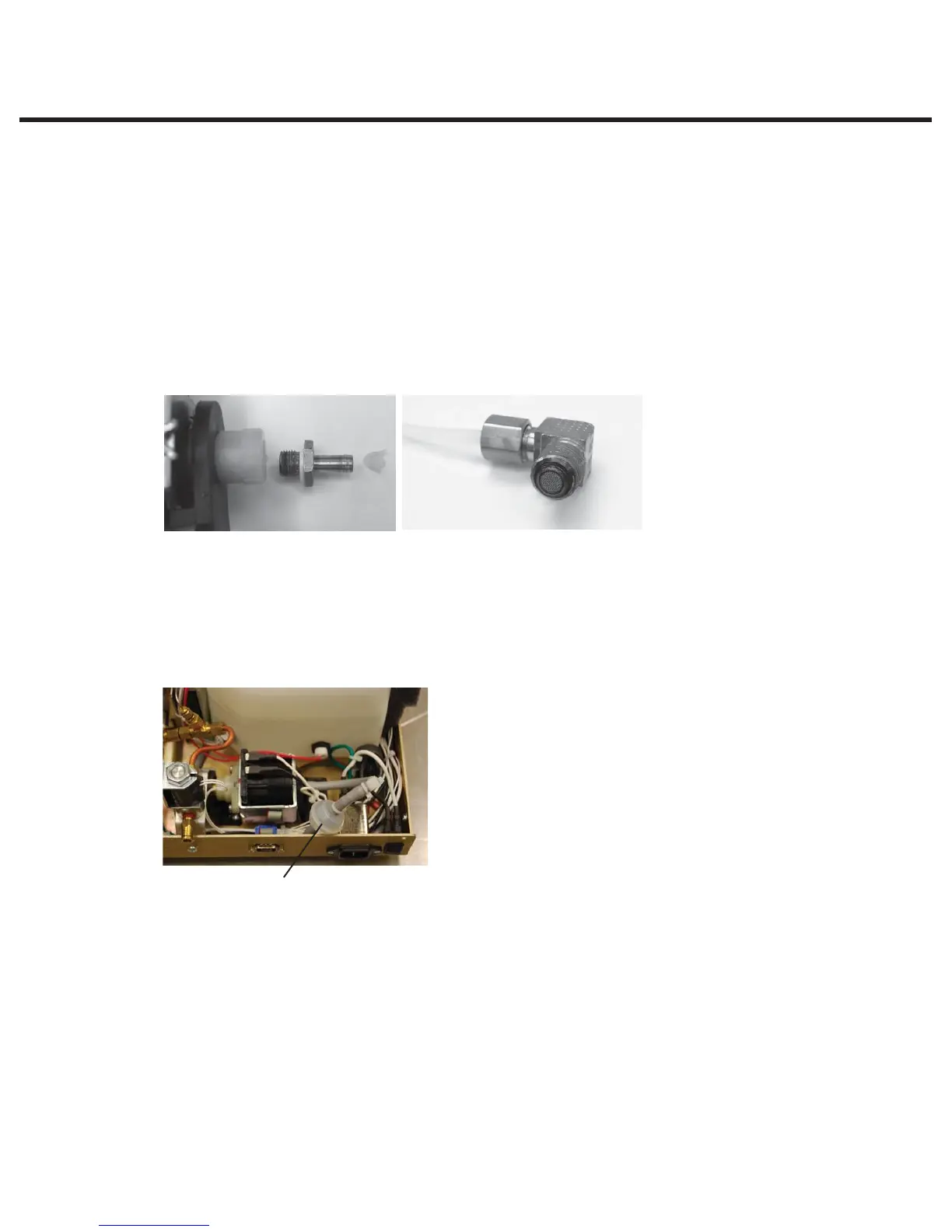

Filter in the inlet fitting
prior to Jun ’07
Filter on the outlet fitting prior to Jun ‘07
Figure 4
In-line filter
Figure 5
