8. Water Pumps, Reservoir, and Compressor
STATIM 2000/2000S/2000 G4 Service Guide
Pump flow parameters
The following pump parameters are valid for this procedure.
Unit Voltage Rating 100 V 50Hz 100 V 60 Hz 110 V 60 Hz 230 V 50 Hz
For units fitted with alluminum steam generators, the following times apply.
Pump type min. max. min. max. min. max. min. max.
Fluid-O-Tech Pump 23 24 25 26 25 26 23 24
SciCan Pump 20 21 23 24 23 24 23 24
Ulka Pump 20 21 23 24 23 24 23 24
For units fitted with Stainless Steel steam generators, the following times apply.
SciCan Pump N/A N/A N/A N/A 21.5 23 17.0 18.5
Note: max. / min. numbers represent time in seconds required to fill the bottle to the min. line.

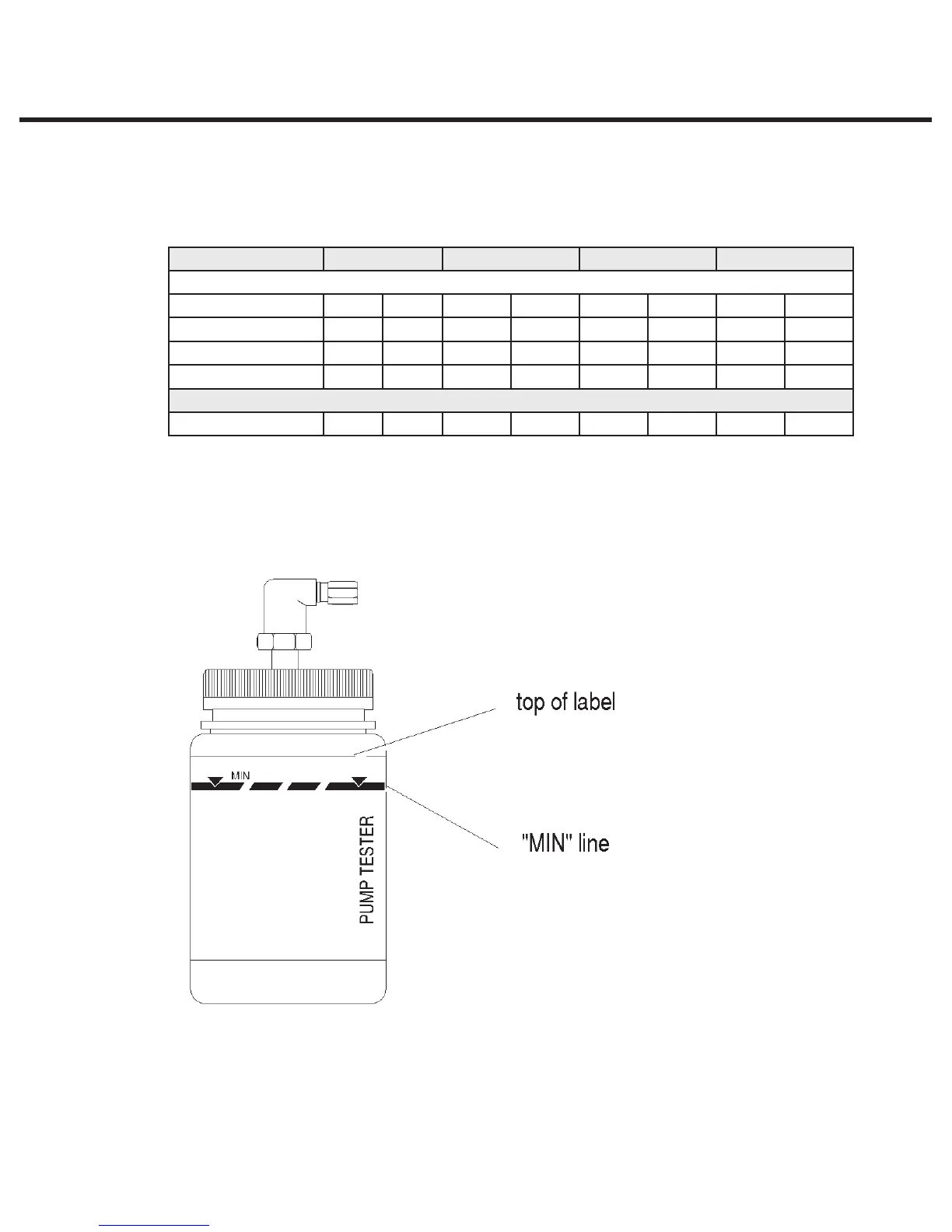

Figure 3
