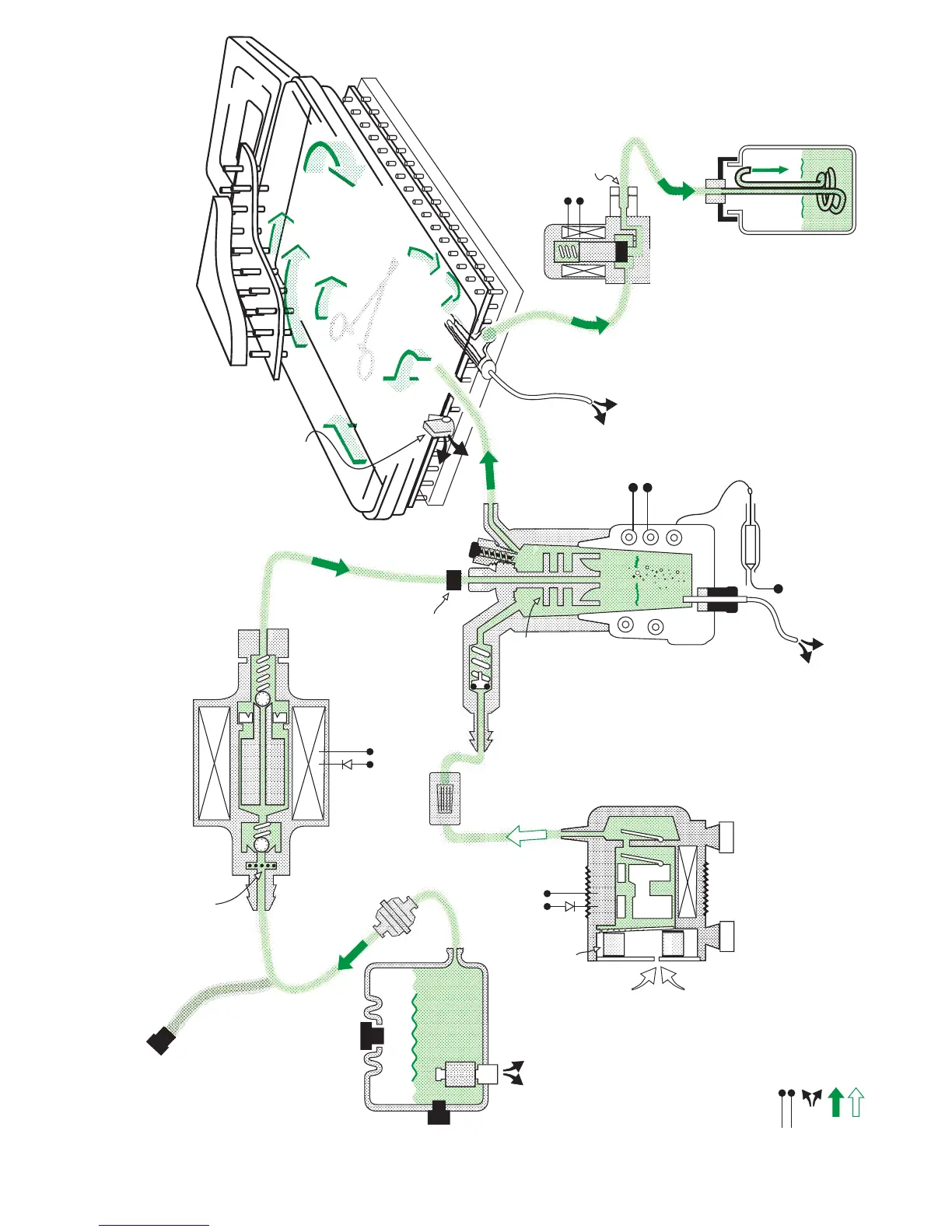

14. STATIM Operational Diagram
WATER RESERVOIR
WATER PUMP
COMPRESSOR
BOILER
WASTE BOTTLE
EXHAUST SOLENOID VALVE
CASSETTE
FILTER
ORIFICE
MICROSWITCH
ARMATURE
PUSH FITTING
CHECK VALVE
DIFFUSER
FILTER
WATER QUALITY SENSOR
IN LINE FILTER
DRAIN TUBE
FLOAT SWITCH
TEFLON TUBING
CASSETTE THERMOCOUPLE
BOILER THERMOCOUPLE
SAFETY
PRV
THERMAL
FUSE
AIR & CONDENSATE OUT
LEGEND
FLUID FLOW
AIR FLOW
110 VAC / 60Hz OR 220 VAC 50Hz
INPUT TO MICROPROCESSOR
STEAM IN
