Page 10
STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0
1. Identifying STAT IM 2000 Units

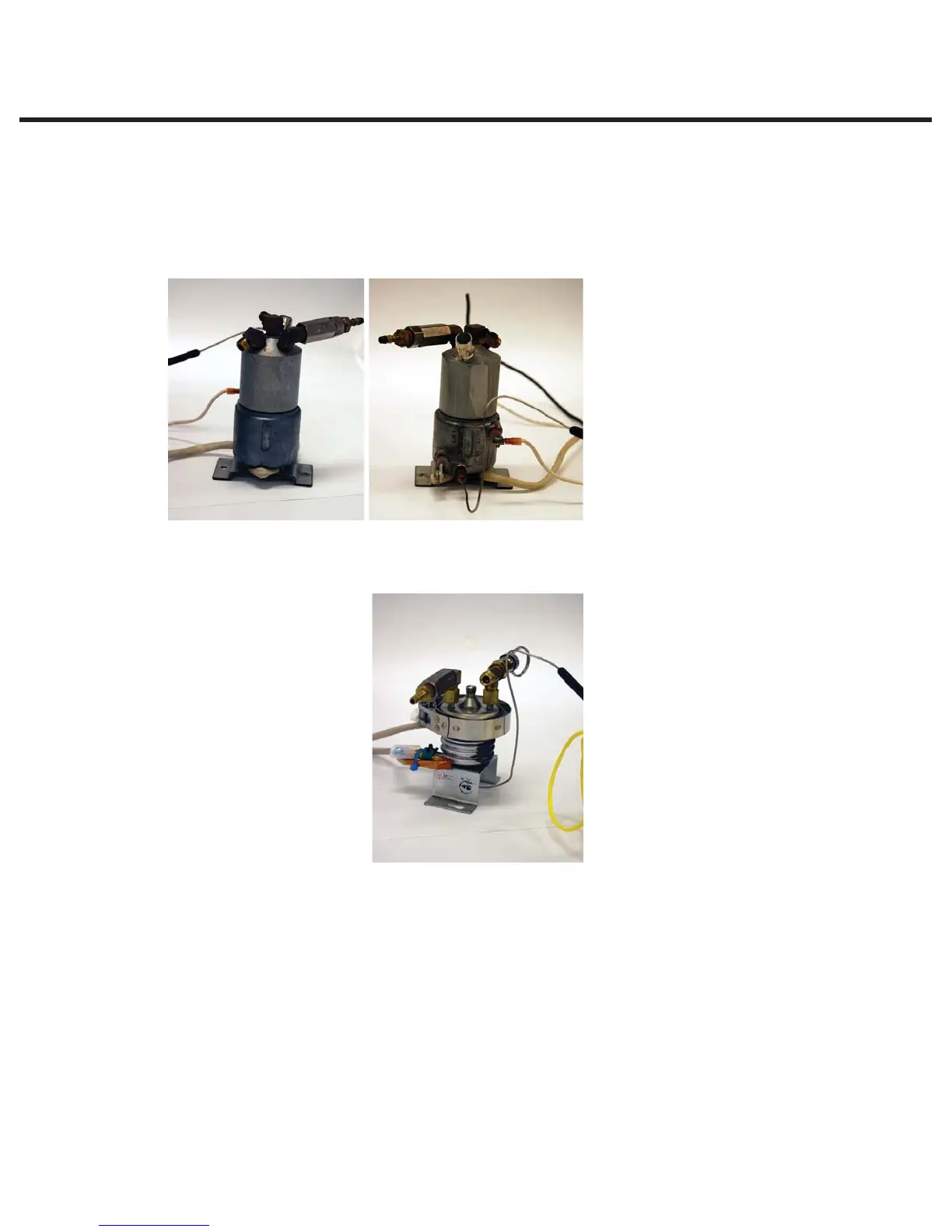

Identifying Steam Generator Types
There are three different types of steam generator (boiler) that may be encountered in STAT IM
2000/2000S units. They can be identified as below (Figure 2):
Aluminum steam generator with internal thermocouple (1992 – 2004):
Stainless steel steam generator (2004 – 2005):
Typical features:
t 70 p.s.i. pressure relief valve (PRV)
(no ring pull)
t Thermocouple embedded in side of
steam generator
t Software required to drive this steam
generator = R1xx/R2xx (revision
3.x/4.x/2.x/5.x PCB)
Typical features:
t Software required to drive this steam
generator = R4xx (revision 6 PCB only)
