1. Identifying STAT
IM
2000 Units

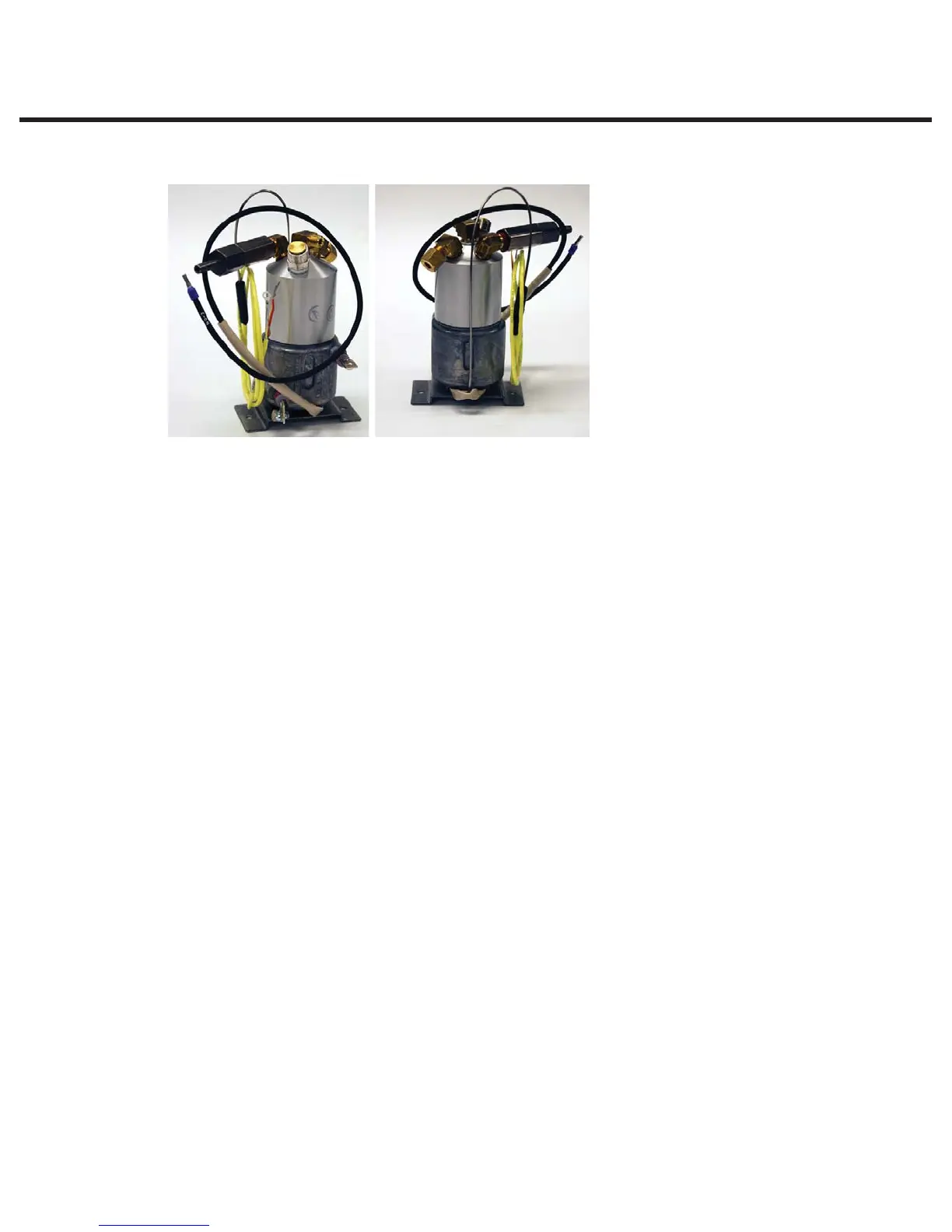

Aluminum steam generator with external thermocouple, a.k.a. ‘ALEX’ boiler (2005 – present):
Typical features:
t 43.5 p.s.i. pressure relief valve (PRV)
(ring pull on S models, no ring pull on
non S models)
t Thermocouple clamped to underside
of steam generator
t Blanking plug in the side of steam
generator in original thermocouple
position
t Software required to drive this steam
generator is R5xx for revision 6 PCB
and R6xx for revision 7 PCB
