8. Water Pumps, Reservoir, and Compressor
STATIM 2000/2000S/2000 G4 Service Guide
12. Apply a small amount of Teflon™ tape or pipe thread compound to the external thread of the
collar and insert the fitting/collar sub assembly into the pump body outlet fitting. Finger tighten
only at this stage, then using a 9/16-inch wrench, tighten one half turn ONLY. Ensure that the
Teflon™ pump tube will reach and the outlet assembly is orientated correctly.
13. Reconnect the pump tube to the pump outlet. Do not kink the Teflon™ tube.
14. Run a sterilization cycle and observe all fittings and tubes for leaks. Check LCD read-outs for
messages indicating cycle status.
Performing water reservoir filter maintenance
For maintenance of units where no internal filters are fitted and a water reservoir filter is installed,
proceed as follows:
Where a reservoir filter is not installed, it can be retro-fitted, but note the filter will not work with
old reservoir caps and therefore ordering a new reservoir cap is recommended to upgrade existing
field units. All replacement caps will come with a new water reservoir filter. Spare Part Kit Numbers
are: Reservoir Cap # 01-101783S, Water Reservoir Filter # 01-109300S.

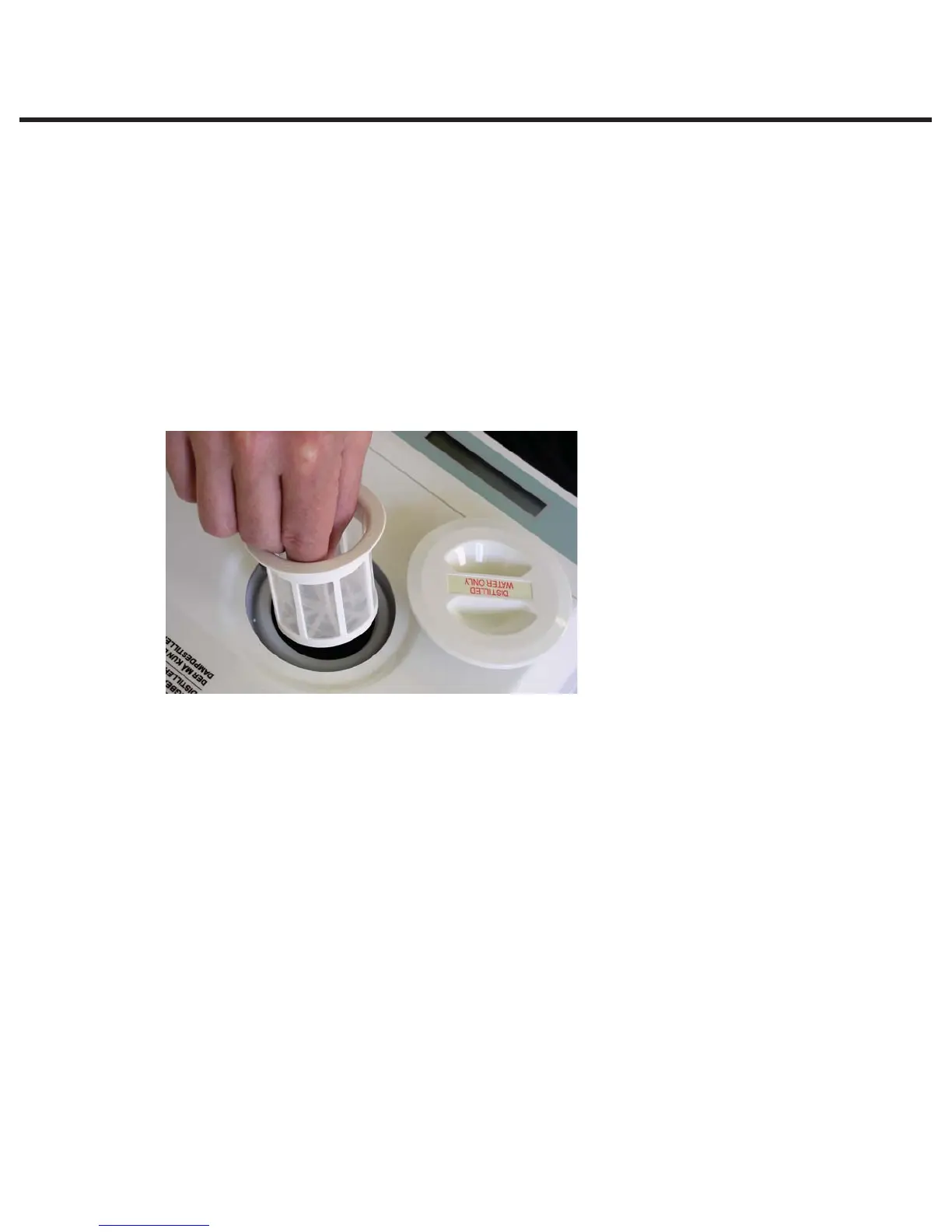

Figure 9
1. Remove the reservoir cap.
2. Grasp the post in the middle of
the filter.
3. Remove the reservoir filter.
4. Rinse under running water.
5. Replace water reservoir filter and
reservoir cap.
