11. Steam Generator, Check Valve, Thermal Fuse and Pressure Relief Valve
Upgraded 2nd generation Alex steam generator (Boris)
NOTE: This version still operates using Rev. 5.x/6.x software.
In mid 2008, SciCan implemented an O-ring seal design to seal the
joint between the cap and base of the boiler assembly to improve the
manufacturability of the steam generator assembly. The main difference
with regard to servicing is that the cap and base can be rotated slightly
relative to each other when the boiler assembly is not mounted in the
machine. This new seal system does not affect the performance of the
sterilizer in any way.
When STATIM steam generator spare part kits are assembled at the factory,
they are wrapped and packaged such that the relationship between cap and
base will be maintained. If this relationship is inadvertently changed, it can be

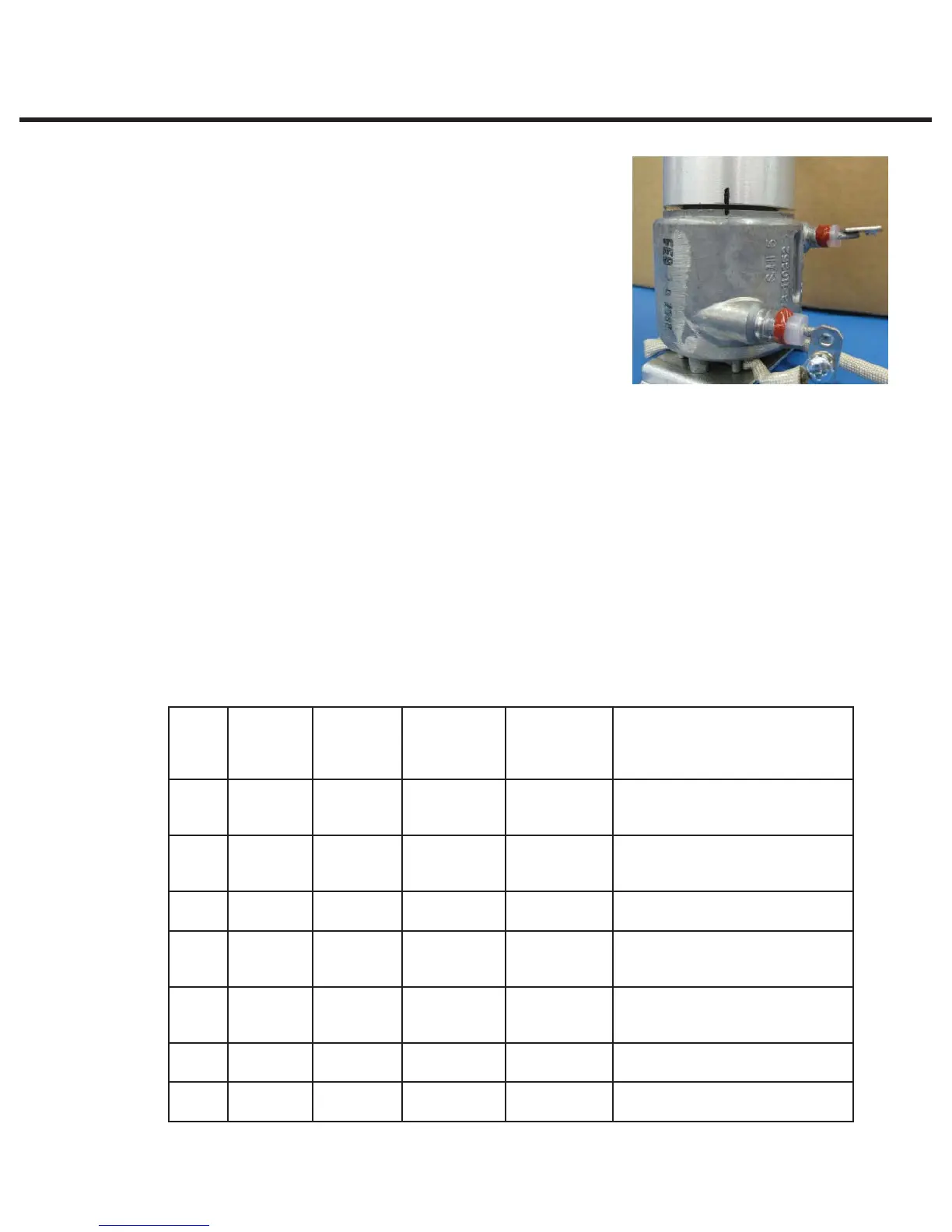

returned to the correct position by rotating the cap relative to the base. This
should be done such that the vertical marks on the boiler base and the boiler
cap line up as defined at the factory (see picture) and the gap from the cap to
the base is between 1mm (1/32”) and 2mm (1/16”).
Replacing 1st generation and
stainless steel steam generators
t These two steam generator types are no longer produced and can
ONLY be upgraded with an Alex derived steam generator.
t The upgrade may vary from a complete steam generator and PCB replacement to a steam
generator and microprocessor replacement (with or without adaptor boards as appropriate)
depending on the model and age of the unit.
t All units factory fitted with, or upgraded to Alex type steam generators will only need a
steam generator replacement.
t The following matrix provides the upgrade kit reference numbers and information:
Model Current
Software
Revision
Current
Steam
Generator
Type
Current PCB
Revision
Alex Upgrade
Kit
Kit Contents — Main Components
2000
110 V
- Aluminium 3.x / 4.x 01-109100S Alex Boiler, Full R7.x PCB, Vaidation
thermocouple, Thermocouple
interface PCB
2000
110 V
S201R1xx
S201R2xx
Aluminium 2.4-2.9x ONLY 01-108996S Alex Boiler, Microprocessor adapter
board, Vaidation thermocouple,
Thermocouple PCB
2000
110 V
S201R4xx Aluminium 6.x 01-108993S Alex Boiler, Chipset, Vaidation
thermocouple, Thermocouple PCB
2000
230 V
- Aluminium 3.x / 4.x 01-109717S Alex Boiler, Full R7.x PCB, Vaidation
thermocouple, Thermocouple
interface PCB
2000
230 V
S202R1xx
S202R2xx
Aluminium 2.4-2.9 / 5.0-
5.3
01-109000S Alex Boiler, Microprocessor adapter
board, Vaidation thermocouple,
Thermocouple interface PCB
2000S
230 V
S2S2R1xx
S2S2R2xx
Aluminium 2.4-2.9 / 5.0-
5.3
01-108991S Alex Boiler, Microprocessor adapter
board
2000S
230 V
S2S2R4xx Stainless
Steel
6.x 01-108989S Alex Boiler, R5.x software chipset,
Pump tube set for Aluminium boiler
