STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0

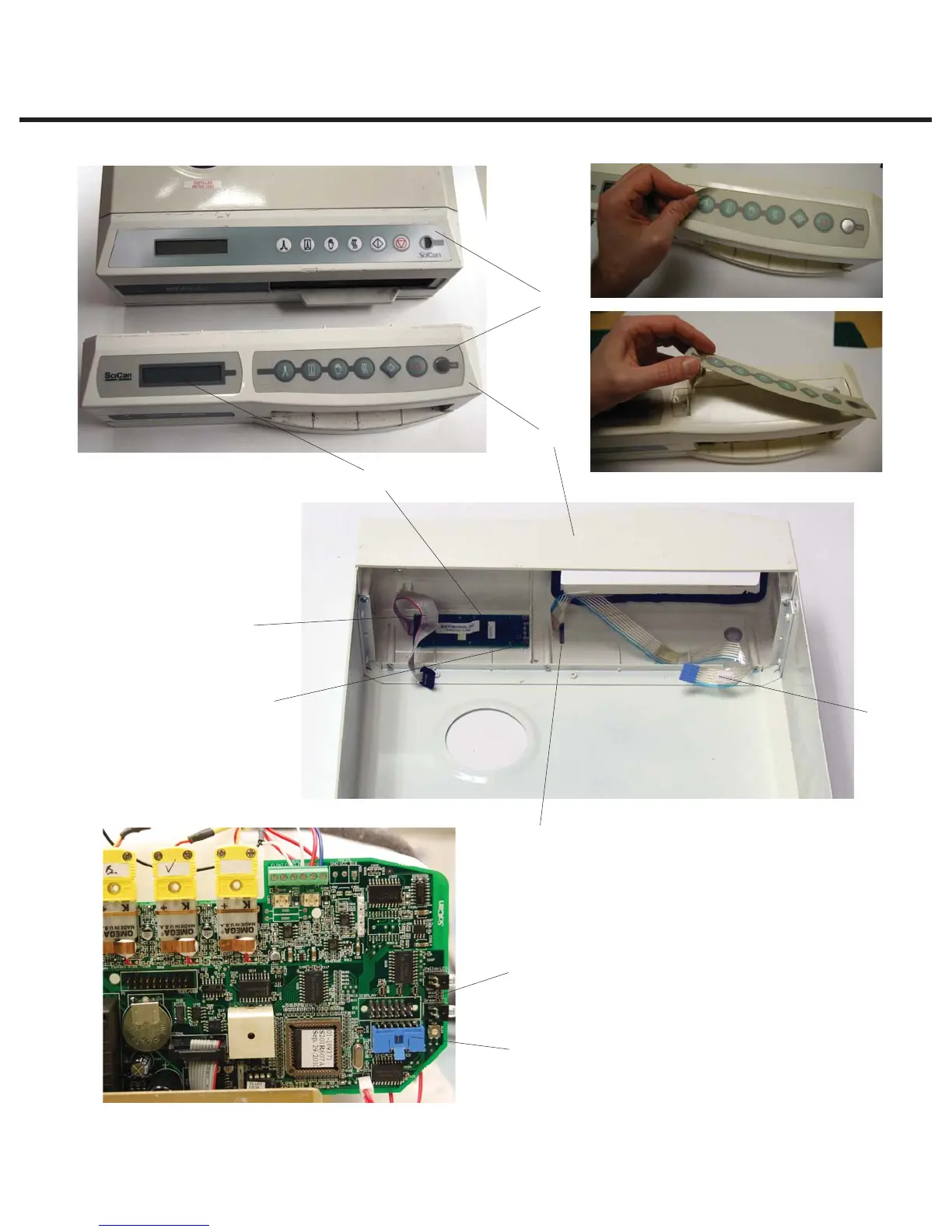

6. Cover Assembly
STATIM 2000/2000S/2000 G4 Service Guide
1. Membrane keypad
2. Fascia
3. Keypad cable
4. P4 connector (for keypad)
5. Keypad cable slot
6. LCD cable
7. LCD connector
8. Countersunk screws
9. Captive fastener
10. LCD
1
2
5
6
10
3
4
7
8, 9
Figure 3
